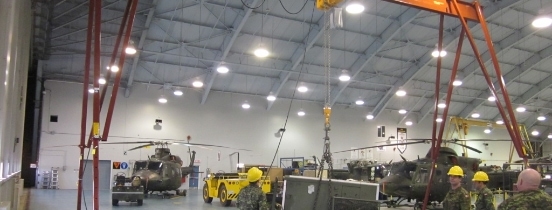

Gantry Cranes
Similar to overhead cranes, Gantry Cranes are built with a runway located on the floor rather than the ceiling. Portable gantry cranes are available for light lifting heavy materials, and these cranes can be used both indoors and outdoors at a lower cost to overhead cranes. These cranes are ideal for applications where lifting support is required without the use of building columns or structural supports.
What to expect from OHSA

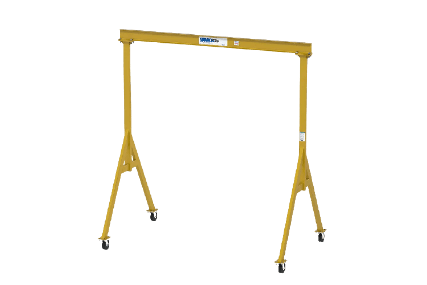

Spanco A Series Gantry Cranes
The A Series Gantry Crane is a portable, lightweight, and affordable lifting solution. This Gantry Crane has an increased span for greater clearance due to the lack of four brace legs. This gantry crane has height adjustment features allowing it to be adjusted in six-inch increments. Height adjustment kits use spring-loaded steel locking pins that automatically engage when height positioning holes are reached which adjusts the height for specific lifts, uneven floors, or to move through doorways.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- available in steel and aluminum
- adjustable and fixed height options available
- portable, lightweight, and affordable
- available in three models
- four-position, swivel-lock casters with moldon polyurethane wheels

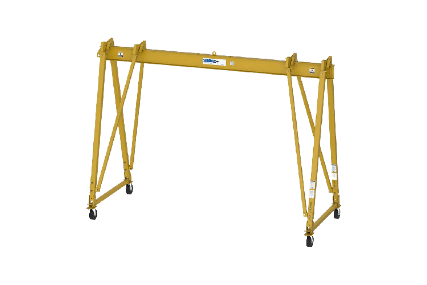

Spanco T series Gantry Cranes
The T Series Gantry Cranes offer three-way adjustability for span, height, and tread. This gantry crane’s flexibility allows for multi-level floor applications, as well as passage through doorways, aisles, and under mezzanines. The engineered design leaves the I-beam free to pivot with superior stability as it self-centers over the load. The “true A-frame” design helps maintain greater stability, virtually eliminating the swaying motion common to other three-way adjustable gantry designs. Main legs, brace legs, and caster frames are made of heavy-gauge, square tubing with zinc-plated hardware. With virtually hundreds of versatile models of Gantry Cranes available, Liftsafe specializes in designing systems that offer flexibility and reliability when you need it. These systems are ideal for applications where lifting support is required without building columns or structural supports.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Adjustable span, height, & tread
- Available in two models: all steel and aluminum I-beam
- Offer three-way adjustability for span, height, and tread.
- Adjustable Height: Adjust in 6-inch intervals using push/pull pins on main legs.
- Heavy-Duty Casters: Four position, swivel-lock casters with moldon polyurethane wheels protect floors from damage.

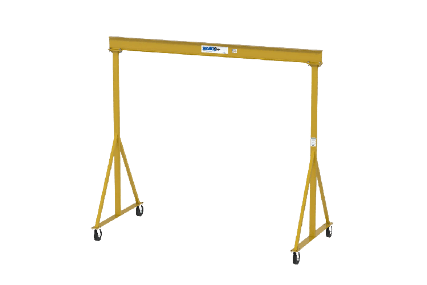

Spanco E series Gantry Cranes
The E Series Gantry Crane is an economical, durable, and dependable lifting solution. This heavy-duty gantry crane is industrial-grade and designed for extended service life. These systems are ideal for applications where lifting support is required without building columns or structural supports. They are made from high-strength square mechanical tubing and fully-braced uprights for solid I-beam positioning. The E-Series gantry cranes are manually propelled, and customization options are available.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Available in two models: Fixed height and adjustable height
- Durable, and dependable lifting solutions.
- Portable: equipped with swivel casters with durable moldon polyurethane wheels for easy rolling and excellent floor protection
- Stable: fully-braced uprights for solid I-beam positioning

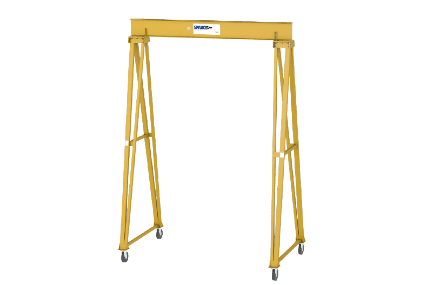

Spanco PF series Gantry Cranes
The PF Series Gantry Crane offers high capacity, high height, long span, and economical lifting solutions. The strong portal frame (PF) cranes are ideal if your facility:
- Cannot support freestanding cranes or ceiling-mounted cranes. PF Gantry Cranes are self-supporting and travel directly on the floor.
- Your lifting volume is moderate and can’t justify more expensive, permanently installed cranes.
- You need an economical, versatile lifting system to supplement your existing overhead cranes.
- You rent your facility and need a solution that can be transported.
Liftsafe Engineering & Service Group specializes in providing systems that offer flexibility and reliability when you need it while meeting all regulatory requirements.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Available in two models: Fixed height and adjustable height
- Durable, and dependable lifting solutions.
- Portable: equipped with swivel casters with durable moldon polyurethane wheels for easy rolling and excellent floor protection
- Stable: fully-braced uprights for solid I-beam positioning

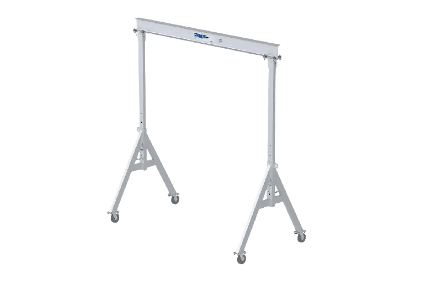

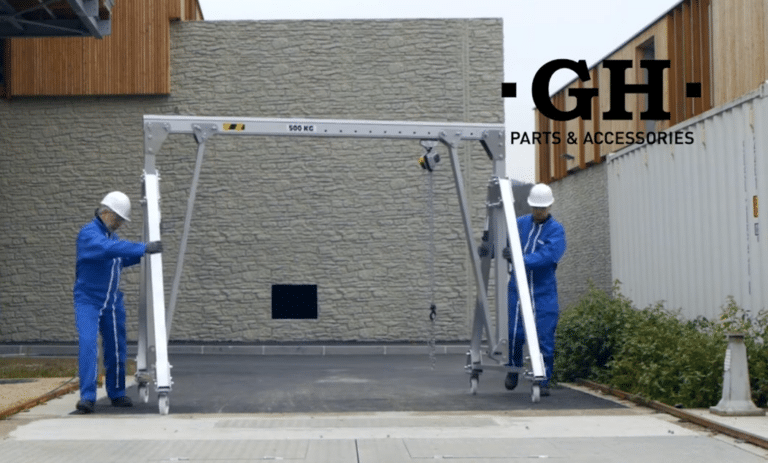

Spanco Aluminum Gantry Cranes
These Spanco All-Aluminum Gantries quickly assemble and disassemble, making them popular for applications needing highly mobile lift equipment to transport in service trucks. Just one or two workers can typically move a disassembled crane up stairways, onto roofs, or in other challenging locations.
These gantry cranes can assemble quickly and position heavy objects precisely. Because they are corrosion-resistant, aluminum gantries are also ideal for refrigerated areas and other controlled environments. A great practical application is the install of bulky HVAC units.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Adjusting in 6-inch increments, height adjustment kits use spring-loaded steel locking pins that automatically engage when height positioning holes are reached; adjust heights for specific lifts, uneven floors, or to move through doorways.
- Four-position, swivel-lock casters with moldon polyurethane wheels provide excellent floor protection.

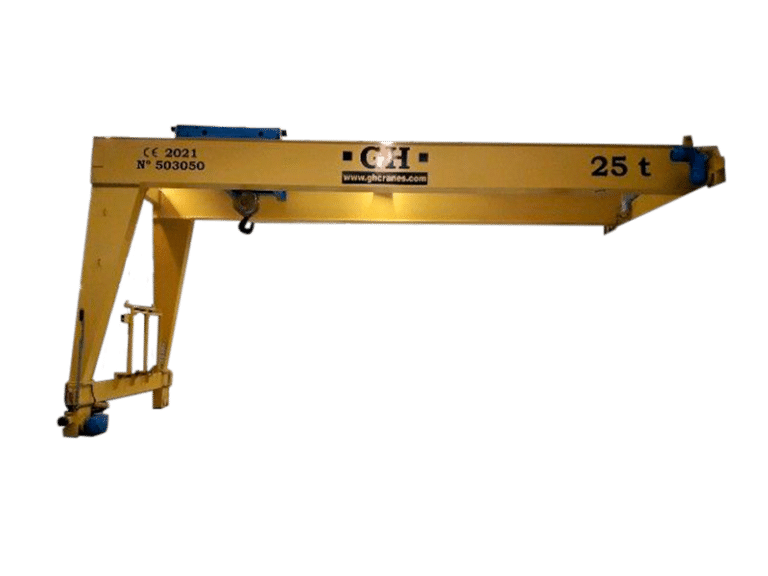

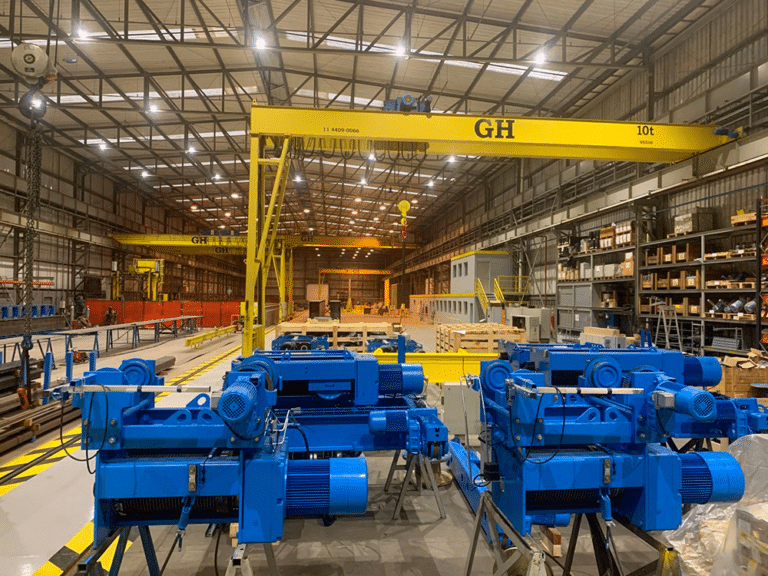

Spanco Single leg Gantry Cranes
These Single Leg Gantry Cranes provide material handling solutions in plants that cannot fit a full-size Gantry Crane due to narrow, confined spaces or crowded machinery. The single-leg Gantry Cranes (also known as a semi-gantry) maximizes your space. One leg end moves over the floor on wheels while the other end runs overhead on a wall-mounted I-beam. These systems are ideal for applications where lifting support is required without the use of building columns or structural supports.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Two motors: one motor to drive the wheels along the floor and another for the overhead track
- Truly trackless (aligning) drives are available
- V-groove rigid steel wheels for travel along a V-track lag-bolted to floor
- Double flange steel wheels for travel on crane rail

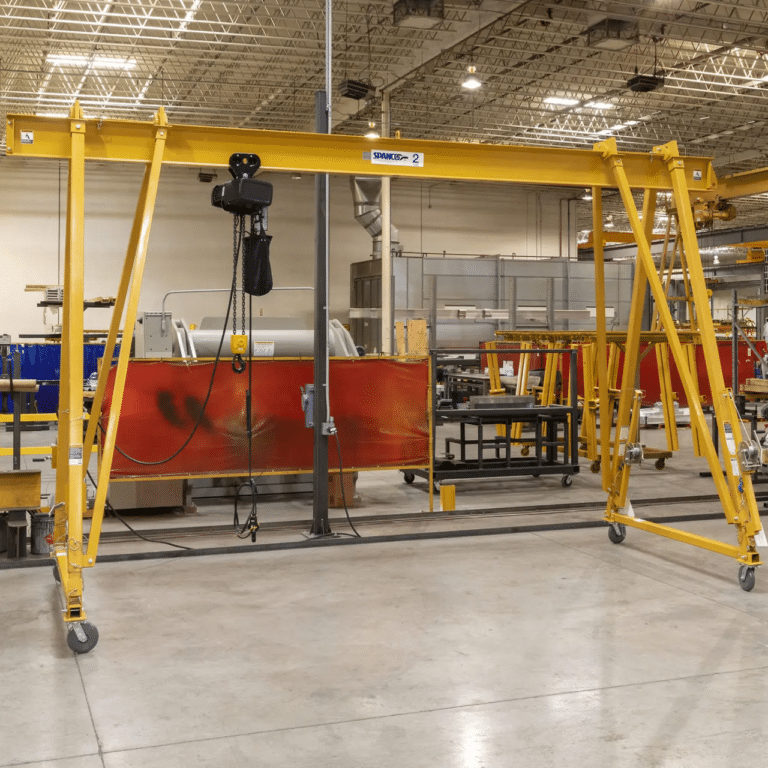

Gorbel adjustable height gantry cranes
These Adjustable Height Steel Gantry Cranes provide an economical way to lift materials anywhere within a facility. The casters enable you to move the gantry around your work area, creating a more cost-effective lifting solution for areas of infrequent lifts. These cranes are ideal for lifting materials anywhere in a facility, localized handling, anywhere lifting equipment is needed on an irregular basis and flexible cell manufacturing.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Square tubing uprights, knee braces, and channel base provide for stable lifting and movement
- Bolted beam to upright connection ensures safety
- Molded phenolic casters are standard and provide for easy movement
- Phenolic wheel

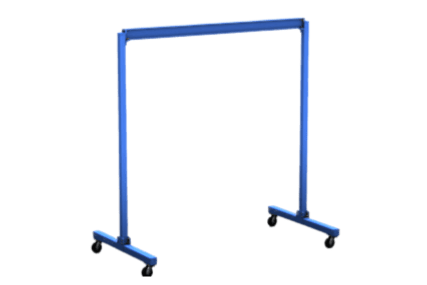

Gorbel fixed height gantry cranes
These Fixed Height Gantry Cranes are moveable under load and provide an economical way to lift materials anywhere in your facility. The casters enable you to easily move the gantry around your work area. This is a more cost-effective lifting solution for areas of infrequent lifts than a more expensive permanent structure. The heavy duty end frame design with square tubing uprights and bases provides stable lifting and movement.
Features: Square tubing uprights, knee braces, and channel base provide for stable lifting and movement, Bolted beam to upright connection ensures safety, Molded phenolic casters are standard and provide for easy movement. CE Approved
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Mobile – move anywhere in a facility
- Movable under load
- Square tubing uprights and bases provide for stable lifting and movement
- Bolted beam to upright connection ensures safety
- Phenolic casters are standard and provide for easy movement
- Four position bolt-on swivel locks

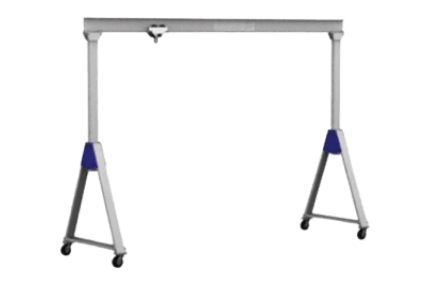

Gorbel adjustable height aluminum gantry cranes
Made from lightweight extruded materials, the Adjustable Height, Aluminum Gantry Cranes from Gorbel, can be easily lifted by one person. A cost-effective solution for shipping lifting equipment to a job site. This crane allows for ease of use in many work areas.
- Lightweight – easily move for use in any location in your facility
- Square tubing uprights and channel base – provides stability when lifting loads and during movements
- Adjustable Height and Span – provides maximum lift in many applications and can easily be adjusted to fit any span
- Collapsible for easy storage – doesn’t take up valuable production space – when not in use
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
Features
- Made from lightweight extruded aluminum for easy lifting
- Uses an S Beam
- Adjustable height
- Collapsible for easy set up and break down
- Underhung Trolley included
Models
80 foot 1 ton Jib Crane
Installed at a nuclear reactor mock-up facility, our team at Liftsafe engineered, designed, manufactured, installed, and inspected an 80′ 1 Ton Jib Crane system. Designed to operate in 50 km/h sustained wind speed, this specific Jib Crane extends 35′ through a custom rooftop hatch opening.
Double Girder Top Running Overhead Crane
Double Girder Top Running Overhead Crane designed, built, inspected and installed all within a tight window, exceeding the customers expectations!
Woodstock Precision Machining Gorbel Easy Arm Crane
The Liftsafe team fabricated, installed and inspected several Workstation Cranes for a large Southern Ontario manufacturing facility. These cranes are designed to eliminate manual lifting and enable workers to move loads throughout the facility.
- CWB Certified Welders (Steel and Aluminum)
- CWB certified for welding of Steel (CSA Standard W47.1, Division 2)
- CWB certified for welding of Aluminum (CSA Standard W47.2, Division 2)
- Professional Engineers Ontario
- CLAC
