Wall Mounted Jib Cranes

Liftsafe Engineering is a trusted provider of complete Wall Mounted Jib Crane systems. Working alongside our reliable suppliers, we combine expert service and knowledge to create both standard and custom systems. For our clients, we offer jib cranes in multiple capacities, types, sizes, and options for overhead lifting. These industrial jib cranes can be portable, wall-mounted, floor-mounted or articulating and are ideal for overhead lifting in a workstation environment. Our jib crane designs offer lifting support for loads ranging anywhere from 100lbs to 30,000lbs, with custom options available. Rely on our in-house engineering, design, fabrication, and installation team to deliver from our comprehensive list of Jib Crane systems.

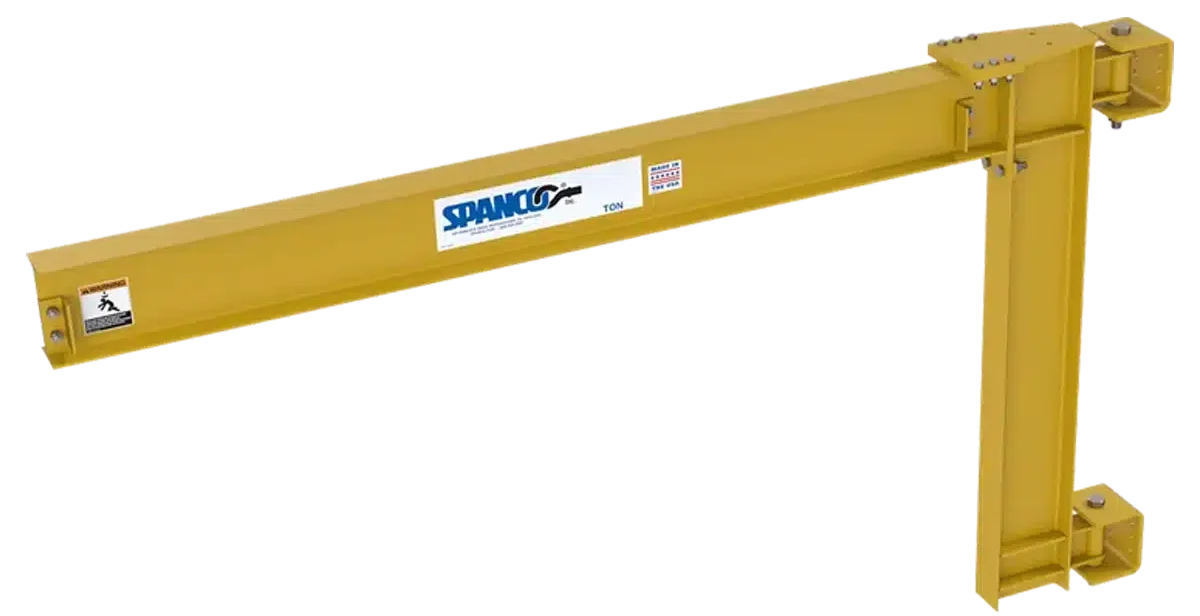

Light Duty Wall Mounted Jib Cranes

A space-saving solution that requires no floor space or special foundations. With a cantilever design offering superior clearance, these cranes fold away efficiently, allowing unobstructed operation even amidst large overhead cranes. Opt for a full-cantilever design that minimizes direct force on building columns compared to tie-rod supported alternatives.

Capacities: up to 5 tons

An economical choice with tie-rod support. This crane allows a trolley hoist to travel the full length of the boom, using wall brackets and a tie-rod supported design. Engineered with a standard I-beam and a single tie rod, it eliminates off-center loading problems. Upgrade your lifting solution affordably with our Wall Mounted Tie-Rod Supported Jib Crane.

Capacities: up to 5 tons

Ideal for tight spaces with small bracket centers, these cranes support tool balancers, hoists, vacuum lifters, and welding wire feeders, offering up to 200° rotation. With capacities ranging from 50 lbs. (for spans up to 10′) to 150 lbs. (for spans up to 12′), they provide a smaller, lighter, and more cost-effective solution for applications involving suspended tools.

Up to 50 lbs and 150 lbs

Heavy duty Wall Mounted Jib Cranes

Enclosed Track
Jib Crane

Wall Bracket Work Station Jib Cranes (WSJ200) are an economical, heavy duty solution. They use tapered roller bearings at the pivot points for unsurpassed ease of rotation. The cantilevered design allows for maximum headroom.

Up to 1,000 lbs

Wall Bracket
Jib Crane

The Wall Bracket Jib Crane contains a single tie rod, right hand threaded at both ends for easy boom adjustment, installations, and is ideal for swinging around obstacles and under obstructions. With its innovative design, the Wall Bracket Jib Crane mounts right to a wall or support structure in your facility.

Up to 10,000 lbs

Wall Cantilever
Jib Crane

The Wall Cantilever Jib Crane delivers hoist coverage and 200° rotation, ideal for standalone use in bays, alongside walls or columns within plants, or as an excellent complement to overhead cranes or monorail systems. Its distinct advantage lies in offering optimal hoist lift, as it can be installed in close proximity to the lowest ceiling obstruction.

Up to 10,000 lbs

Wall mounted enclosed track WORKSTATION JIB

Our agile Workstation Jib Cranes, featuring lightweight booms, ensure easy maneuverability, quick starts, and stops, offering faster rotation than I-beam cranes with an excellent return on investment. The cranes are built around smooth-running enclosed tracks and trolleys, providing a self-cleaning track to prevent debris accumulation and a V-shaped profile for precise trolley wheel alignment, reducing friction and wear. Hoist trolleys come with large-diameter polyamide wheels and anti-friction ball bearings. We offer versatile enclosed track options, including steel tracks rolled from high-quality grades with various coatings.

Up to 1,000 lbs


The Wall-Traveling Jib Cranes provide long lateral movement of materials without taking up floor space or interfering with large overhead cranes. Wall-traveling jibs increase overall plant productivity by quickly handling smaller lifts.

Capacities: up to 5 metric tons
