MANUAL Hand Chain Hoists

Liftsafe Engineering offers a wide selection of manual hand chain hoists, also known as chain fall hoists, from many different manufacturers. These hoists are available in various capacities, types, sizes and options for construction, utility and industrial markets. Hand chain hoists are ideal for construction, maintenance, and industrial applications. Hand chain hoists are a reliable and efficient solution for facilities where electricity is impractical or unavailable, such as a portable gantry or jib crane. These hoists are an economical solution that provides unmatched durability and reliability. Specialized chain falls are also available to accommodate low headroom, explosion-proof environments or cleanroom environments.

Kito CF Series

The CF combines simplicity in design with uncompromising performance. Crafted with a die-cast aluminum body, it ensures lightweight durability that withstands environmental exposure without corrosion concerns. With its proven 1:1 ratio gear system, this hoist delivers swift and reliable operation while being maintenance-friendly. When you require an economical yet resilient hoist, the CF stands out as the optimal choice for tough jobs.
Request a Quote

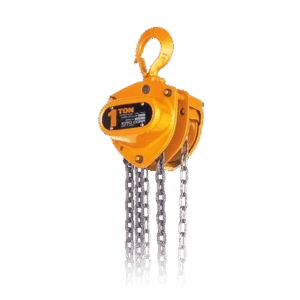

Kito M3CB Series

Built with heavy-grade components, it withstands severe -40˚C winter temperatures. Featuring a rugged high-impact steel housing and an abrasion-resistant load chain, it ensures durability and safety for every task. With a bearing-supported high-strength pinion for efficient lifting and an optional maintenance-free slip clutch for added safety, the M3CB delivers reliability and performance in any environment.
Request a Quote

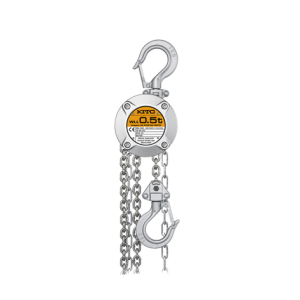

Kito CX Series

The CX hand chain hoist is designed for easy installation and load attachment while delivering both exceptional design and performance. With the ¼ tonne model weighing under 6 lbs, the ½ tonne model under 9.9 lbs, and the 1 tonne model under 16 lbs, it offers unparalleled lightweight convenience. Featuring heat-treated gears and an innovative sealed brake system, the CX is safeguarded against damage.
Request a Quote

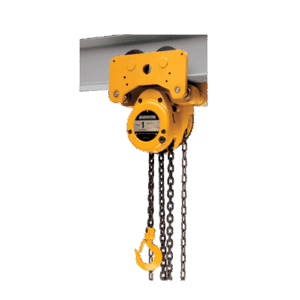

Kito NTH Series

Kito's NTH trolley hoists are engineered for applications with limited headroom, offering a seamless integration of our low-maintenance CF hand chain hoist with a uniquely attached trolley. This innovative design creates a remarkably durable and compact trolley/hoist combination ideal for confined areas. Available with geared or push/pull trolley options and equipped with drop stops as standard, the NTH Navy Trolley Hoist ensures efficient operation in any environment.
Request a Quote

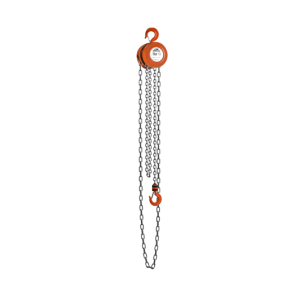

CM 622A Series

The CM Series 622-A hand chain hoist boasts a straightforward, efficient, and cost-effective design. Featuring an ultra-low-headroom profile and lightweight steel construction, it's effortlessly installed even in tight spaces. This redesigned hoist requires minimal pull force for operation and boasts larger hook throat openings for easier attachment. Built for longevity, its heat-treated steel frame ensures durability and safety with a 4:1 design factor.
Request a Quote

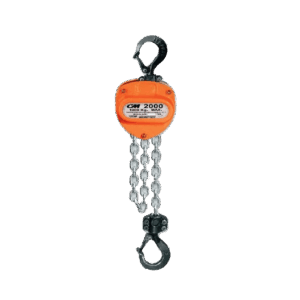

CM 2000 Series

The CM 2000 hand chain hoists are available in capacities ranging from 1/2 to 10 tons. These manual chain hoists feature a compact, lightweight design with high-strength chain differentiation and can be mounted on push or geared trolleys for added versatility. With low maintenance requirements, and steel alloy load chains, CM 2000 Hand Chain Hoists ensure efficient and safe lifting operations, complete with load hooks featuring safety tabs for added security.
Request a Quote

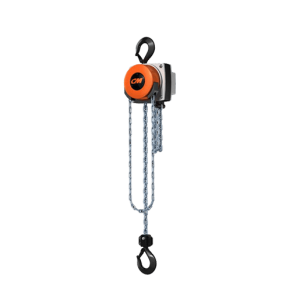

CM Hurricane Series

The Hurricane 360 Hook Mount hand chain hoist by CM is a revolutionary solution for challenging lifting applications. Its patented rotating hand chain cover allows for full 360-degree rotation, enabling safe and efficient lifting from any angle, even in confined spaces. Trusted for reliability and safety, the hoist is equipped with a Weston-style braking system and a standard load limiter for automatic overload protection. The hoist meets ASME B30.16 and European CE Standard regulations.
Request a Quote

Specifications

Regulations

Resources

Manual Hand Chain Hoist Specifications

Feature

Kito CF Standard Duty

Kito M3CB Heavy Duty

Kito CX Miniature

Kito NTH Navy Trolley

CM Series

CM 2000

CM Hurricane 360

Capacity (metric tonnes)

½ to 3

1/2 to 50

1/4 to 1

1 – 3

1/2

1/2 to 10

1/2 to 5

Standards

ASME B30.16, ASME HST-2

ASME B30.16, ASME HST-2

ASME B30.16, ASME HST-2M

ANSI/ASME B30.16, ANSI/ASME HST-2M

ASME B30.16, ASME HST-2M

ASME B30.16, ASME HST-2M

ASME B30.16, ASME HST-2M

Options

Nickel-plated chain, Custom lift lengths

Chain container, Slip clutch, Custom lift lengths

Carrying bag, Custom lift lengths

Chain container, Corrosion-resistant chain, Inspection hook

N/A

N/A

Chain containers, Zinc-plated chains, Latchlok hooks

Body

Die-cast aluminum

High-impact steel

Aluminum with steel frame

Built-in trolley

Steel

Hardened steel

Powder-coated steel

Hand Chain

Durable steel

High-quality steel

Durable stainless steel

High-quality steel

Steel alloy

Galvanized steel

Zinc-plated steel

Load Chain

Heat-treated alloy steel, Grade 100

Grade 100, Heat-treated manganese alloy

Nickel-plated Grade 100

Heat-treated manganese alloy, Grade 100

Hardened steel

Steel alloy

Zinc-plated steel

Hooks

Forged, heat-treated carbon steel

Forged, heat-treated carbon steel

Forged, heat-treated alloy steel

Forged, heat-treated alloy steel

Load hooks with safety tabs

Load hooks with safety tabs

N/A

Operation

Hand chain operated

Hand chain operated

Hand chain operated

Hand chain operated

Hand chain operated

Hand chain operated

Hand chain operated

Gears

Single reduction gearing

Double reduction gearing

Double reduction gearing

N/A

N/A

N/A

N/A

Bearings

Pre-lubricated ball bearings

Maintenance-free sealed bearings

Maintenance-free sealed bearings

Sealed, lubed-for-life ball bearings

N/A

N/A

N/A

Brake

Weston-style load brake

Double pawl springs

Double pawl springs

Weston-style load brake

Weston-style load brake

Weston-style load brake

Weston-style load brake

Regulations

Each of these systems meet the standards laid out in the AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6 and CMAA 74.
