ELECTRIC Chain Hoists
At Liftsafe, we pride ourselves on providing a diverse range of electric chain hoists, including options for single-phase and three-phase requirements. Our selection, featuring trusted brands like Kito, STAHL and CM, ensures that you receive top-notch quality, reliability, and longevity.
Discover the versatility of Liftsafe’s electric chain hoists, offering solutions for heavy-duty lifting across a spectrum of applications. Our hoists are designed to handle industrial and commercial projects with cost-effective precision. Whether you’re in need of reliable solutions for overhead cranes, workstation cranes, or jib cranes, Liftsafe Engineering will support the entire lifecycle of your lifting equipment.

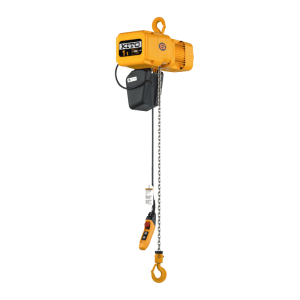

Kito ER2 Series

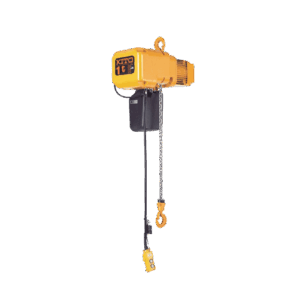

Kito SER Series
Kito ED Series

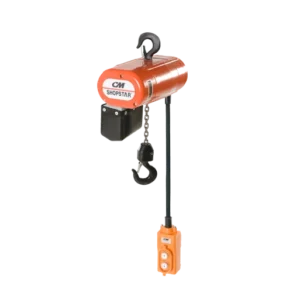

CM Shopstar

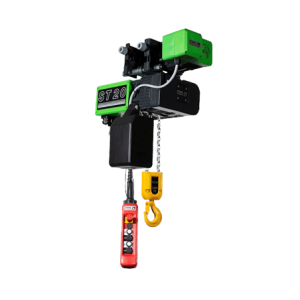

Stahl ST Series

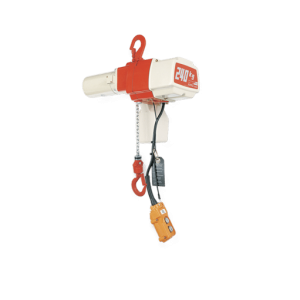

CM Loadstar
Electric Chain Hoist Specifications
| Feature | Kito ER2 Heavy Duty | Kito SER Heavy Duty | Kito ED High Speed | CM Shopstar Electric | CM Lodestar Classic | STAHL ST Chain |
|---|---|---|---|---|---|---|
| Capacity | ⅛ to 20 metric tonnes | ¼ to 3 metric tonnes | 100 to 480 kilograms | 250 to 1000 lbs | Up to 3 tonnes | 125 kg to 6,300 kg |
| Standards | CSA, ASME B30.16, ASME H4, IP55 | CSA, ASME B30.16, ASME 4, IP55 | CSA, ASME B30.16, ASME HST-1, IP44 | ASME B30.16 | ASME B30.16 | FEM/ISO, ATEX, IECEx, NEC, CEC, INMETRO, TC RU |
| Options | Various chain containers, lift lengths customization, trolley mount options | Various chain containers, lift lengths customization, trolley mount options | Dual speed, chain containers, lift lengths customization, trolley mount options | Unique rocker switch and comfort-fit design, with variable controls, durable chain containers, and swivel hook suspension options. | Harsh environment hoists available | Frequency inverters, explosion-protected design |
| Body | Die-cast aluminum, sealed, low headroom | Die-cast aluminum, sealed, low headroom | Die-cast aluminum, weather tight, low headroom | Cast aluminum alloy, epoxy powder-coat finish | N/A | Solid cast iron, short and compact |
| Gears | Alloy steel helical gears in oil bath | Alloy steel helical and spur gears in oil bath | Induction-hardened spur gears in oil bath | Lifetime lubricated with non-oxidizing grease | Lifetime lubricated with non-oxidizing grease | Overmounted drive shaft |
| Load Chain | Nickel-plated Grade 80 | Nickel-plated Grade 80 | Nickel-plated Grade 80 | CM Hoistaloy® Load Chain | Hoist alloy load chain | Custom options |
| Chain Guide | Heavy-duty cast iron, easily replaceable | Heavy-duty cast iron, easily replaceable | Heavy-duty cast iron | N/A | Hardened chain guides | Solid cast iron chain guide |
| Hooks | Forged carbon steel, self-closing, swivel bottom hook | Forged carbon steel, self-closing, swivel bottom hook | Forged carbon steel, self-closing, swivel bottom hook | Hardened, forged-steel, latch-type hooks | Hardened, forged-steel, latch-type hooks | N/A |
| Controls | Central electrical panel, plug-in connectors, dual-speed VFD | Central electrical panel, push button station, IP65 | Pendant control, in-line cylinder control, adjustable speeds | Industrial-rated control system, rigid-hook suspension | N/A | Frequency inverters from Magnetek |
| Brake | DC electromagnetic brake | Pull-rotor motor brake | Weston-style mechanical load brake, regenerative brake | Standard overload protection device | Standard overload protection device | Low-maintenance, asbestos-free electromagnetic disc brake |
| Motor | Three-phase, TEFC squirrel cage, Class B | Single-phase, TEFC squirrel cage, Class B | DC with rectifier, variable high speeds | Thermally protected, single- & 3-phase voltage options | Hoist duty motor | High ISO classification according to FEM/ISO standards |
| Overload Protection | Friction clutch, limit switch | Friction clutch, upper limit switch | Friction clutch, integrated high-performance clutch | Standard overload device | Standard overload protection device | Standard overload protection device |
| Overtravel Protection | Limit switch | Upper limit switch | Integrated friction clutch | N/A | Screw-type limit switches | N/A |
| Operating Conditions | -20˚C to +40˚C, humidity < 85% | -20˚C to +40˚C, humidity < 85% | -20˚C to +40˚C | N/A | N/A | N/A |
Regulations
Each of these systems meet the standards laid out in the AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6 and CMAA 74.
