Lever Hoists
What to expect from OHSA

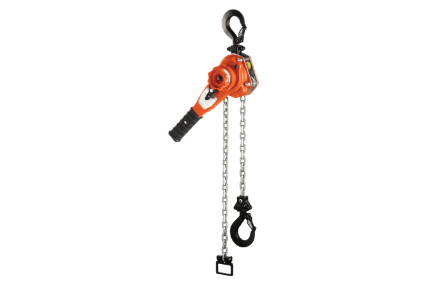

CM Lever hoists
Redefining lever-operated hoists, CM features top-of-the-line features and operations in both lifting and pulling applications. Ergonomically designed for increased safety, CM lever hoists let the operator work up to 12 times faster and with much less pull force than conventional ratchet lever tools. Their lever-operated hoists feature minimal lever pull effort combined with high-quality, rugged materials for close quarter pulling, stretching, and hoisting applications. CM lever hoists are ideal for a wide array of applications in construction, industrial and plant operations.
- Equipment capacity, speed and lift details available upon request.
- All hoist and crane products are not available for direct sale through featured suppliers.
- Liftsafe Engineering is an authorized dealer of all CM products and offers competitive pricing and customization to our clients.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
Product Name | Part Number | Capacity (tons) | Standard Lift (m) | Lever Pull to Lift (kg) | Net Weight (lbs) | ||
---|---|---|---|---|---|---|---|
Bandit Ratchet Lever Hoist | BAN07505R | 0.8267 | 1.52 | 20.41 | 13.6 | Request a Quote | |
BAN07510R | 0.8267 | 3.05 | 20.41 | 15.69 | Request a Quote | ||
BAN07515R | 0.8267 | 4.57 | 20.41 | 17.98 | Request a Quote | ||
BAN07520R | 0.8267 | 6.1 | 20.41 | 20.1 | Request a Quote | ||
BAN15005R | 1.6534 | 1.52 | 29.03 | 20.7 | Request a Quote | ||
BAN15010R | 1.6534 | 3.05 | 29.03 | 24.3 | Request a Quote | ||
BAN15015R | 1.6534 | 4.57 | 29.03 | 27.88 | Request a Quote | ||
BAN15020R | 1.6534 | 6.1 | 29.03 | 31.5 | Request a Quote | ||
BAN30005 | 3.3069 | 1.52 | 33.11 | 38.29 | Request a Quote | ||
BAN30010 | 3.3069 | 3.05 | 33.11 | 45.7 | Request a Quote | ||
BAN30015 | 3.3069 | 4.57 | 33.11 | 52.99 | Request a Quote | ||
BAN30020 | 3.3069 | 6.1 | 33.11 | 60.4 | Request a Quote | ||
BAN60005 | 6.6138 | 1.52 | 42.18 | 63.2 | Request a Quote | ||
BAN60010 | 6.6138 | 3.05 | 42.18 | 77.89 | Request a Quote | ||
BAN60015 | 6.6138 | 4.57 | 42.18 | 92.59 | Request a Quote | ||
BAN60020 | 6.6138 | 6.1 | 42.18 | 107.36 | Request a Quote | ||
Customizations available | |||||||
CM Little Mule Lineman’s Strap Hoist | 04190W | 1 | 4.25 ft | 11 | Request a Quote | ||
04141W | 1.5 | 4.25 ft | 11 | Request a Quote | |||
04480WC | 1.5 | 7 ft | 11.5 | Request a Quote | |||
04490WC | 2 | 5.5 ft | 12.5 | Request a Quote | |||
04181W | 3 | 5 ft | 25.5 | Request a Quote | |||
Available with hot stick ring hooks with safety latches, standard hooks with heavy duty swivel gate latches, and hot stick ring hoks with hot stick ring safety latches | |||||||
Series 602 Mini Ratchet Lever Hoists | 210 | 0.2755 | 5 ft | 6 | Request a Quote | ||
214 | 0.2755 | 10 ft | 7 | Request a Quote | |||
Customizations available | |||||||
Series 603 Mini Ratchet Lever Hoists | 215 | 0.2755 | 5 ft | 7 | Request a Quote | ||
216 | 0.2755 | 10 ft | 8 | Request a Quote | |||
Customizations available | |||||||
CM Puller Lever Hoist | 4043 | 0.75 | 5 ft | 58 lbs | 16 | Request a Quote | |
4045 | 1.5 | 5 ft | 89 lbs | 26 | Request a Quote | ||
4047 | 3 | 5 ft | 95 lbs | 38 | Request a Quote | ||
4050 | 6 | 5 ft | 96 lbs | 73 | Request a Quote | ||
Also available in a short handle version for lighter loads and tighter spaces – Customizations available | |||||||
Series 653 Hand Operated Lever Hoist | 5310 | 0.75 | 5ft | 33 lbs | 15 | Request a Quote | |
5311 | 0.75 | 10ft | 33 lbs | 15.8 | Request a Quote | ||
5312 | 0.75 | 15ft | 33 lbs | 16.6 | Request a Quote | ||
5313 | 0.75 | 20ft | 33 lbs | 17.3 | Request a Quote | ||
5328 | 1 | 5ft | 44 lbs | 15 | Request a Quote | ||
5315 | 1.5 | 5ft | 51 lbs | 27 | Request a Quote | ||
5316 | 1.5 | 10ft | 51 lbs | 31.4 | Request a Quote | ||
5317 | 1.5 | 15ft | 51 lbs | 35.8 | Request a Quote | ||
5318 | 1.5 | 20ft | 51 lbs | 40.2 | Request a Quote | ||
5329 | 2 | 5ft | 68 lbs | 27 | Request a Quote | ||
5320 | 3 | 5ft | 77 lbs | 45 | Request a Quote | ||
5321 | 3 | 10ft | 77 lbs | 52.3 | Request a Quote | ||
5330 | 6 | 5ft | 77 lbs | 78 | Request a Quote | ||
5331 | 6 | 10ft | 77 lbs | 94 | Request a Quote | ||
5332 | 6 | 15ft | 77 lbs | 110 | Request a Quote | ||
5333 | 6 | 20ft | 77 lbs | 126 | Request a Quote | ||
Customizations available | |||||||
CM Tornado 360 Ratchet Lever Hoist | 85004728 | 0.82 | 1.5 | 14.6 | Request a Quote | ||
85004729 | 0.82 | 3 | 16.8 | Request a Quote | |||
85004730 | 0.82 | 4.5 | 19 | Request a Quote | |||
85004731 | 0.82 | 6 | 21.2 | Request a Quote | |||
85004732 | 0.82 | less chain | 11.95 | Request a Quote | |||
85004734 | 1.65 | 1.5 | 21 | Request a Quote | |||
85004735 | 1.65 | 3 | 24.5 | Request a Quote | |||
85004736 | 1.65 | 4.5 | 28.1 | Request a Quote | |||
85004737 | 1.65 | 6 | 31.6 | Request a Quote | |||
85004738 | 1.65 | less chain | 16.71 | Request a Quote | |||
85004740 | 3.3 | 1.5 | 36.61 | Request a Quote | |||
85004741 | 3.3 | 3 | 44.01 | Request a Quote | |||
85004742 | 3.3 | 4.5 | 51.41 | Request a Quote | |||
85004743 | 3.3 | 6 | 58.81 | Request a Quote | |||
85004744 | 3.3 | less chain | 29.21 | Request a Quote | |||
85005052 | 6.61 | 1.5 | 52.26 | Request a Quote | |||
85005053 | 6.61 | 3 | 59.66 | Request a Quote | |||
85005054 | 6.61 | 4.5 | 67.06 | Request a Quote | |||
85005055 | 6.61 | 6 | 74.46 | Request a Quote | |||
85005056 | 6.61 | less chain | 44.86 | Request a Quote | |||
CM rigger lever operated hoist |

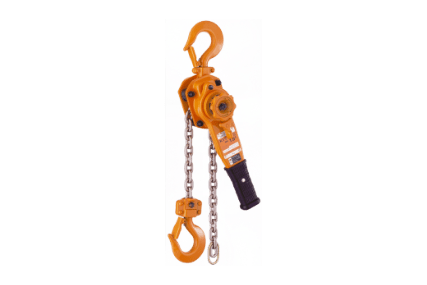

KITO Lever hoists
Kito lever hoists are industry recognized and proven to perform in the most extreme and demanding applications. With a focus on quality, Kito engineers all of its manually operated products to be very safe, high-performing, and extremely durable- built to accomplish the toughest tasks.
- Equipment capacity, speed and lift details available upon request.
- All hoist and crane products are not available for direct sale through featured suppliers.
- Liftsafe Engineering is an authorized dealer of all KITO products and offers competitive pricing and customization to our clients.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
Product Name | Part Number | Capacity (tons) | Standard lift (ft) | Hand Pull to Lift (kg) | Ship Weight (lbs) | |||
---|---|---|---|---|---|---|---|---|
KITO LB Series | L5LB008 | 0.75 | 5 | 27 | 13 | Request a Quote | ||
L5LB015 | 1.5 | 5 | 32 | 18 | Request a Quote | |||
L5LB025 | 2.5 | 5 | 37 | 25 | Request a Quote | |||
L5LB030 | 3 | 5 | 35 | 33 | Request a Quote | |||
L5LB060 | 6 | 5 | 36 | 57 | Request a Quote | |||
L5LB090 | 9 | 5 | 39 | 88 | Request a Quote | |||
Customizations available | ||||||||
KITO LB-SC Series | L5LB008 | 0.75 | 5 | 27 | 13 | Request a Quote | ||
L5LB015 | 1.5 | 5 | 32 | 18 | Request a Quote | |||
L5LB025 | 2.5 | 5 | 37 | 26 | Request a Quote | |||
L5LB030 | 3 | 5 | 35 | 35 | Request a Quote | |||
L5LB060 | 6 | 5 | 36 | 59 | Request a Quote | |||
L5LB090 | 9 | 5 | 39 | 92 | Request a Quote | |||
Customizations available | ||||||||
LX Miniature Lever Hoist | LX003 | 1/4 | 20 | 8 | 4 | Request a Quote | ||
LX005 | 1/2 | 31 | 9.7 | 6 | Request a Quote | |||
Customizations available |

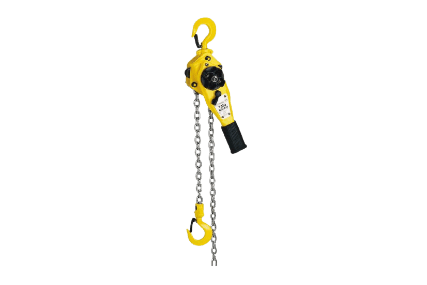

Yale Lever hoists
Yale offers a wide range of lever hoists for multiple applications and budgets. These lever hoists are manufactured from high-quality materials and are corrosion-protected. Every Yale lever hoist is factory tested and ideally suited for applications that demand maximum portability and ruggedness.
- Equipment capacity, speed and lift details available upon request.
- All hoist and crane products are not available for direct sale through featured suppliers.
- Liftsafe Engineering is an authorized dealer of all Yale products and offers competitive pricing and customization to our clients.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
Product Name | Part Number | Capacity (tons) | Standard lift (ft) | Min. Distance between hooks (in) | Net weight (lbs) | |||
---|---|---|---|---|---|---|---|---|
PM Ratchet Lever Hoist | 829-04100 | 0.75 | 5 | 12 | 13 | Request a Quote | ||
829-05100 | 1 | 5 | 13 | 14 | Request a Quote | |||
829-06100 | 1.5 | 5 | 14.5 | 21 | Request a Quote | |||
829-09100 | 3 | 5 | 17.5 | 37 | Request a Quote | |||
Customizations available | ||||||||
PD2 Ratchet Lever Hoist | 931-04107 | 0.75 | 5 | 13 | 18 | Request a Quote | ||
931-06107 | 1.5 | 5 | 15.5 | 29 | Request a Quote | |||
931-09107 | 3 | 5 | 18 | 41 | Request a Quote | |||
931-14107 | 6 | 5 | 21 | 72 | Request a Quote | |||
Customizations available | ||||||||
PE2 Ratchet Lever Hoist | 931-04108 | 0.75 | 5 | 10.75 | 16 | Request a Quote | ||
931-06108 | 1.5 | 5 | 14.25 | 26 | Request a Quote | |||
931-09108 | 3 | 5 | 16 15/16 | 38 | Request a Quote | |||
931-14108 | 6 | 5 | 21 3/8 | 73 | Request a Quote | |||
Customizations available |

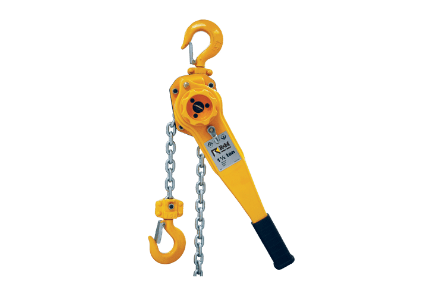

R&M Lever hoists
RL and RLP lever pullers offer a compact and light weight solution for your lifting and pulling needs. All R&M lever pullers are equipped with important safety features, including a dual pawl Weston-style brake with two friction discs providing four braking surfaces and an all-steel construction. These hoists can operate in tight spaces with 360° handle rotation.
- Equipment capacity, speed and lift details available upon request.
- All hoist and crane products are not available for direct sale through featured suppliers.
- Liftsafe Engineering is an authorized dealer of all R&M products and offers competitive pricing and customization to our clients.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
Product Name | Part Number | Capacity (tons) | Handle length (inch) | Nominal Lever effort (lbs) | Weight (lbs) | |||
---|---|---|---|---|---|---|---|---|
RLP Premium Manual Lever Puller | RLP-750 | 0.75 | 11 | 31.5 | 16.5 | Request a Quote | ||
RLP-1000 | 1 | 11 | 42 | 16.5 | Request a Quote | |||
RLP-1500 | 1.5 | 16.14 | 49.5 | 26 | Request a Quote | |||
RLP-3000 | 3 | 16.14 | 72 | 50 | Request a Quote | |||
RLP-6000 | 6 | 16.14 | 77 | 69 | Request a Quote | |||
Customizations available | ||||||||
RL Manual Lever Puller | RL-250 | 0.25 | 6.61 | 55 | 5 | Request a Quote | ||
RL-750 | 0.75 | 12.13 | 55 | 14 | Request a Quote | |||
RL-1500 | 1.5 | 16.06 | 66 | 21 | Request a Quote | |||
RL-3000 | 3 | 16.46 | 88 | 45 | Request a Quote | |||
Customizations available |

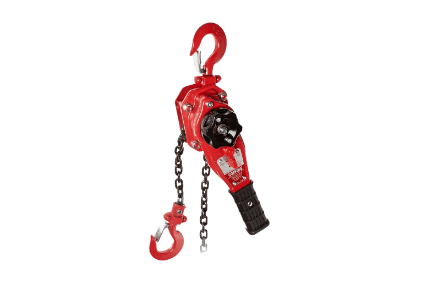

Coffing Lever hoists
Coffing Hoists offers diverse lifting and positioning products, including manual and powered hoists and trolleys. Coffing provides economical, user-friendly hand chain hoists and lever tools for maintenance and repair staff. The Coffing Lever Hoists are durable hoists suitable for numerous in-house and field applications. These stamped steel hoists are lightweight and durable and feature a through-hardened load chain for long life.
- Equipment capacity, speed and lift details available upon request.
- All hoist and crane products are not available for direct sale through featured suppliers.
- Liftsafe Engineering is an authorized dealer of all Coffing products and offers competitive pricing and customization to our clients.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
Product Name | Part Number | Capacity (tons) | Handle length (inch) | Lift (ft) | Weight (lbs) | |||
---|---|---|---|---|---|---|---|---|
LSB Lever hoist | LSB-1500B-5 | 0.75 | 9.25 | 5-20 | 12-18 | Request a Quote | ||
LSB-3000B-5 | 1.5 | 14.5625 | 5-20 | 21-30 | Request a Quote | |||
LSB-6000B-5 | 3 | 14.5625 | 5-20 | 35-50 | Request a Quote | |||
LSB-12000B-5 | 6 | 14.5625 | 5-20 | 67-99 | Request a Quote | |||
Customizations Available | ||||||||
G Series lever hoist | AG/AGI | 0.75 | 18.75 | 56.5 | 14 | Request a Quote | ||
ATG/ATGI | 1.5 | 18.75 | 57 | 17 | Request a Quote | |||
FG/FGI | 1.5 | 27.625 | 56.5 | 25 | Request a Quote | |||
FTG/FTGI | 3 | 27.625 | 57 | 34 | Request a Quote | |||
ZG-41/2 | 4.5 | 33.625 | 53 | 49 | Request a Quote | |||
ZG-6 | 6 | 33.625 | 53 | 59 | Request a Quote | |||
WG-9 | 9 | 33.625 | 60 | 120 | Request a Quote | |||
WG-11 | 11 | 33.625 | 60 | 130 | Request a Quote | |||
WG13 | 13 | 33.625 | 60 | 140 | Request a Quote | |||
WG-15 | 15 | 33.625 | 60 | 150 | Request a Quote | |||
Customizations available |
