Electric Winches
Liftsafe Engineering & Service Group offers electric winches designed to pull heavy loads horizontally over a slightly inclined or level surface. Winches are often categorized with hoists, but where a winch pulls horizontally, a hoist is designed to lift a load vertically over steeper inclines. Based on your facility and equipment applications, an open winch can be an excellent lifting solution. Liftsafe Engineering & Service Group offers industrial electric winches, ideal for towing automobiles and heavy equipment. Our specialists can help you determine the open winch system that best suits your facility and job requirements. We will take environment, task, facility space and equipment transportation needs into consideration when recommending the ideal lifting solution.

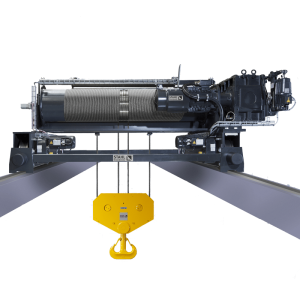

Stahl 8 Series Winch
The SHW 8 winch is engineered to tackle the most demanding tasks with ease. With a robust design capable of handling loads up to 160,000 kg, this powerhouse solution offers unparalleled strength and reliability. Its compact construction and minimal rope reevings ensure efficiency without sacrificing performance. Featuring a range of motor options, including smooth speed control and soft start capabilities, the SHW 8 winch provides versatile solutions to meet diverse operational needs. Additionally, for hazardous environments, explosion-proof configurations are available, ensuring safety without compromising functionality. With modular components derived from the proven SH range, cost-effective customization is seamless, facilitating easy transportation and rapid installation.
Jeamar NHT Series
The NHT Series heavy duty hauling winches are engineered for robust performance in demanding applications. They feature steel-fabricated winch drums sized to ASME B30.7.2007 standards, ensuring reliability with a minimum pitch diameter of 15 times the nominal rope diameter. The direct-drive design maximizes power output and permits versatile mounting options, ensuring efficient operation in horizontal or vertical positions. Safety is prioritized with fully reversible functionality, allowing complete control of the load in both directions. Built for continuous heavy-duty operation with high service factors, they are equipped with high-efficiency helical gear reducers and anti-friction bearings for longevity, low noise, and high torque output.
Electric Winch Specifications
Feature | STAHL SHW 8 Winch | JEAMAR NHT Series |
Program | Based on SH wire rope hoist program | N/A |
Load Capacity | Up to 160,000 kg | Designed to specific loading capacity |
Motors | Three motors up to 38 kW with two speeds | 3-phase motors, TEFC flange mounted |
Motor Options | Six motors up to 98 kW with stepless speed control | Single-phase motors available for certain models |
Drive Technology | Versatile drive technology | Direct-drive design |
Compact Design | Compact height due to innovative cable drive design | Open-base design allows mounting in any position |
Explosion-Proof Option | Available on request | N/A |
Regulations
Each of these systems meet the standards laid out in the AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6 and CMAA 74.
