Balancers

When conducting repetitive high-cycle jobs, balancers are a time and money-saving tool support device. They’re a low-cost and easy-to-use alternative to physical lifting. To provide a zero-gravity movement of equipment or materials, balancers use either springs or pneumatic air systems. When used in conjunction with jibs and workstation cranes, balancers efficiently handle all types of tools and parts at high speeds. Air balancers have a capacity range of 50 to 2000 pounds (22 to 909 kg). Mechanical spring balancers are suited for applications in which a fixed weight travels a limited vertical distance.

Models

Air Balancers

Intelligent Lifting Devices

Mechanical (Spring) Balancer

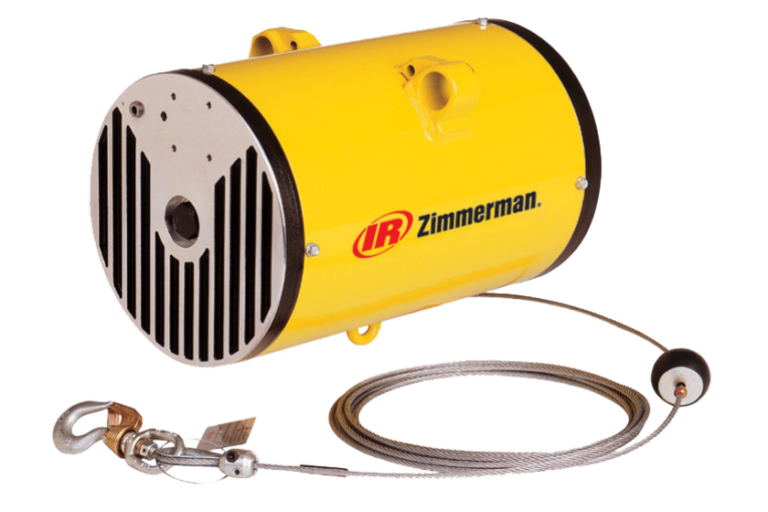

Air Balancers

Air Balancers

Air Balancers are designed to assist in ergonomically transferring loads, up, down or balance “float” products safely and efficiently. Ideal for repetitive, high cycle tasks, Air Balancers are a cost-effective solution that will significantly increase production within your facility by leveraging a zero gravity movement of tools or materials.

Features such as the load float, allow users the ability to slowly and precisely place parts/materials into position. This is an ideal ergonomic solution for repetitive, high cycle tasks or precise “slower” applications.

Supplier	Product name	Capacity	Net weight	Vertical Travel	Diamater of Balancer	Features and Benefits
Ingersoll Rand	BA Series	Up to 2000 lbs	225 lbs	Up to 120 in	Up to 260 mm	Features: Precise positioning Pre-lubricated piston chamber Intuitive speed control Continuous duty operation Standard emergency cable retract brakes Benefits: Suspension kits are available for virtually all enclosed track manufacturers, as well as I-beam, Patented/Hardened track, and Hook mounted configurations. Standard Z-Servo control amplifies the inputs and reduces the effort required to lift the load.	Request a Quote
	B Series	Up to 2000 lbs	225 lbs	Up to 120 in	Up to 254 mm		Request a Quote
	EA Series	Up to 2000 lbs	225 lbs	Up to 120 in	Up to 254 mm		Request a Quote
	ZA Series	Up to 2000 lbs	225 lbs	Up to 120 in	Up to 254 mm		Request a Quote

Knight Global	Single Cable/Chain Pneumatic Balancer Series	Up to 700 lbs		Up to 110 in		Features: CE compliant Cable or chain Hands-free operation Standard “float” mode Internal centrifugal retract control Requires non-lubricated clean/dry air Benefits: Stroke is longer (certain models) Optional external retract controls Optional limit switches Optional high relieving and feather touch controls Optional reeved and tandem series Tool-bench-sized applications Multiple suspension kits are available	Request a Quote
	Reeved Cable/Chain Pneumatic Balancer series	Up to 1400 lbs		Up to 40 in		Features: CE compliant cable or chain Hands-free operation Standard “float” mode Internal centrifugal retract control Requires non-lubricated clean/dry air Benefits: Optional external retract controls Optional limit switches Optional high relieving and feather touch controls Multiple suspension kits are available	Request a Quote
	Tandem Cable/Chain Pneumatic Balancer series	Up to 1400 lbs		Up to 80 in		Features: CE compliant Cable or chain Hands-free operation Standard “float” mode Internal centrifugal retract control Requires non-lubricated clean/dry air Benefits Optional external retract controls Optional limit switches Multiple suspension kits are available	Request a Quote
Each series is available in external retract control and Limit Switch options.

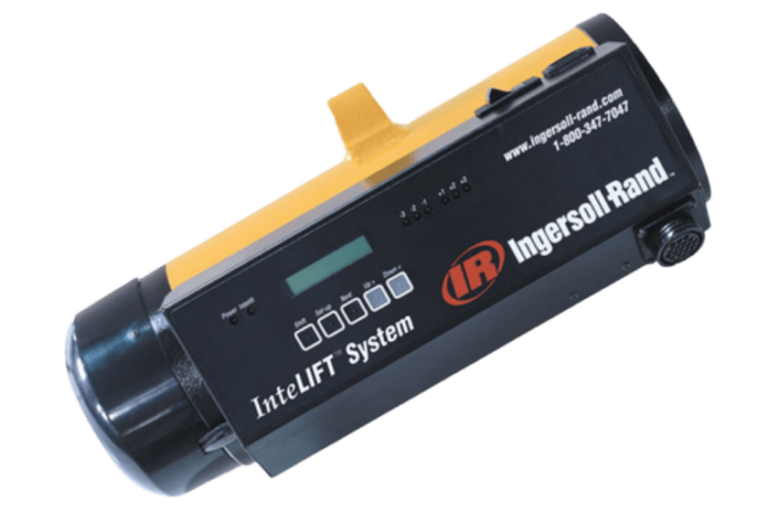

Intelligent Lifting Devices

Intelligent Lifting Devices

Intelligent Lifting Devices combine the industry’s finest, mechanical balancing technology with the intelligence of precise, reliable electronic controls. This innovative combination provides operators with a safe, ergonomic, and highly flexible solution that can increase productivity and cost savings. To learn more about which type of Intelligent Lifting Devices will work with your equipment, contact one of our specialists for recommendations.

Supplier	Product name	Capacity	Net weight	Vertical Travel	Diamater of Balancer	Features
Ingersoll Rand	InteLIFT Basic Series Balancers	Up to 1000 lbs	Up to 125 lbs	Up to 114 in	Up to 10 in	Hoist Mode: Lift and lower is the default mode of the InteLIFT unit, allowing the operator precision handling of variable weight loads. Float mode: Allows the operator to manually raise, lower and position “Float” a load with virtually no part weight or resistance to the operator. Pouring mode: This built-in programming feature allows operators to dump or pour material while maintaining load position and stability at a constant elevation. Smart drop mode: Allows for the automatic release of a load by a handling device once the load is lowered and no longer supported by the InteLIFT unit.		Request a Quote
Ingersoll Rand	InteLIFT Sensing Series Balancers	Up to 1000 lbs	Up to 120 lbs	Up to 114 in	Up to 10 in	Hoist Mode: Lift and lower is the default mode of the InteLIFT unit, allowing the operator precision handling of variable weight loads. Float mode: Allows the operator to manually raise, lower and position “Float” a load with virtually no part weight or resistance to the operator. Pouring mode: This built-in programming feature allows operators to dump or pour material while maintaining load position and stability at a constant elevation. Smart drop mode: Allows for the automatic release of a load by a handling device once the load is lowered and no longer supported by the InteLIFT unit.		Request a Quote

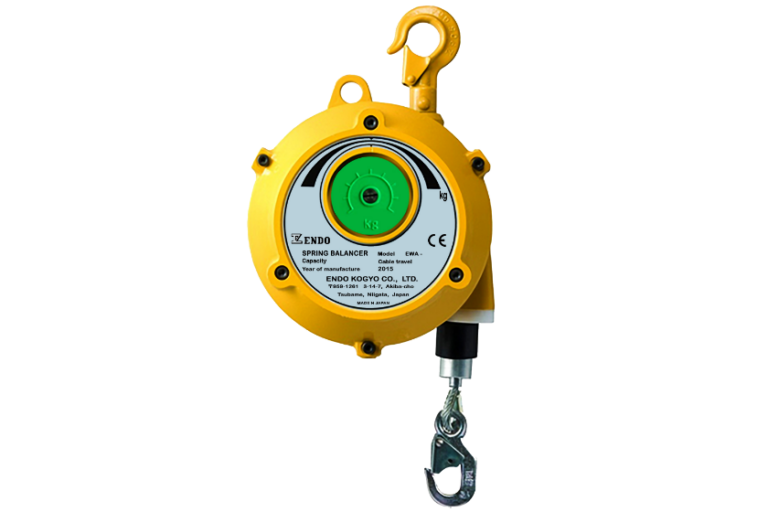

Mechanical (Spring) Balancer

Mechanical (Spring) Balancer

Liftsafe Engineering offers gravity free mechanical spring balancers designed for intermediate and heavy-duty material handling applications. Tool balancers, load balancers, and spring balancers are the ideal tools to balance a constant load. These balancers permit fatigue-free working, even over prolonged periods of time.

Precise, strain-free positioning allows an operator to hands-free raise, lower, or shift heavy loads with virtually no resistance.
Built-in safety features include overload protection and cable recoil breaks.
Hook mount systems can be suspended with ease on a fixed system such as a jib crane or workstation crane.
Rapid ROI through increased productivity.
Reduced product damage.
Reduce the possibility of operator injury.
Enhances job performance.
Eliminates potential regulatory fines for unsafe work.

Supplier	Product name	Capacity	Net weight	Diamater of Wire Rope	Features
Endo	EK Series	Up to 1.5 kg	Up to 0.5 kg	Up to 3 mm	A compact balancer that hangs lightweight objects. Ideal for hanging various tools.	Request a Quote
	EW Series	Up to 5 kg	Up to 1.5 kg	Up to 3 mm	This balancer is a standard type that can be used for a broad range of applications. For suspending electrical devices, jigs, tools, and materials for processed goods. Centering operations. Balancing device for various kinds of equipment.	Request a Quote
	EWS Series	Up to 7 kg	Up to 2.1 kg	Up to 3 mm	The exposed part of the drum is reduced as much as possible to ensure worker safety. The fall-arrest device prevents a suspended object from dropping even in the unlikely event that the spring breaks.	Request a Quote
	EWF Series	Up to 120 kg	Up to 27.5 kg	Up to 4.76 mm	The balancer of this series is equipped with safety features that are same as the EWS series. It also has a gauge for adjustment with respect to the suspended mass. Therefore, tension adjustment can be performed easily. For suspending electrical devices, jigs, tools, and materials for processed goods. Centering operations. Balancing device for various kinds of equipment.	Request a Quote
	ETP Series	Up to 200 kg	Up to 29.7	Up to 6 mm	This series is for suspending heavy objects. For suspending nut runners. As an auxiliary power source for large size doors.	Request a Quote
	ELF Series	Up to 70 kg	Up to 18 kg	Up to 4.76 mm	For suspending electrical devices, jigs, and materials for processed goods. Centering operations. For cable suspended robots. Balancing device for various kinds of equipment.	Request a Quote
	RSB Series	Up to 40 kg	Up to 8.5 kg	Up to 5 mm	With the ratchet mechanism, you can stop the wire rope at any position even when the balancer is not loaded. When suspended loads are exchanged frequently. For suspending washed objects.	Request a Quote
	ERP Series	Up to 2 kg	Up to 0.4 kg	Up to 2 mm	This compact balancer is ideal for suspending lightweight objects. This type is equipped with a nylon rope. For suspending electric screwdrivers or similar devices.	Request a Quote

Projects

Resources

Regulations

Supporting Services

Projects

Resources

Regulations

Supporting Services

Hierarchy of ergonomics

Elimination

Where possible, it is always best to eliminate any possible hazards.

Engineering Controls

The goal of engineering controls is to improve the fit between the demands of work tasks and the capabilities of your workers safely.

Administrative controls

Administrative improvements, such as job rotation or alternating, can help reduce workers’ exposures to risk factors by limiting the amount of time workers spend on “problem jobs”.

Training

Training alone does not provide an ergonomic improvement. Instead, it should be used together with any workplace changes made. Workers need training and hands-on practice with new tools, equipment, or work practices to make sure they have the skills necessary to work safely.
