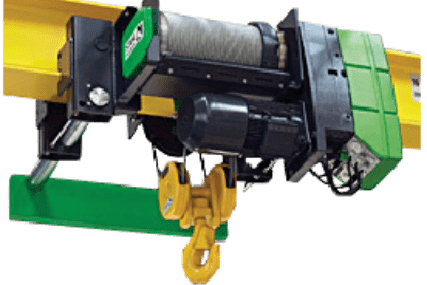

Wire Rope Hoists
Liftsafe Engineering offers many different brands, capacities, lifts, and options for wire rope hoists. Wire Rope Hoists are ideal for construction, maintenance, and industrial applications with exceptional durability and reliability. Our specialists are here to help find the right wire rope hoist for your facility or customize a solution for unique applications.
What to expect from OHSA
GH Wire Rope Hoists
GH wire rope hoists, for bridge, gantry and semi-gantry cranes, single and double girder, and other types of applications. These wire rope hoists incorporate frequency inverters to their hoist and cross travel movement as a standard feature. This feature also prevents hazardous swing, improves motor protection and extends the working life of the motors and other crane mechanisms, resulting in decreased maintenance costs. The range of GH hoists have been designed with the following principles; reliability, security, durability, price and easy maintenance.
- Equipment capacity, speed and lift details available upon request.
- All hoist and crane products are not available for direct sale through featured suppliers.
- Liftsafe Engineering is a stocking dealer (with exclusivity in Ontario and Quebec) of all GH products and offers competitive pricing and delivery timelines to our clients.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
|Capacity||Part Number||Speed (m/min)||Duty FEM||Height of lift 1||Height of lift 2||Height of lift 3||Falls|
|1,000 kg||GHA12_014105M7||5||M7||4.5||8||1/9||4/1||Request a Quote|
|GHA12_012110M6||10||M6||9||16||1/20||2/1||Request a Quote|
|GHB11_011116M7||16||M7||14.5||27.1||2/5||1/1||Request a Quote|
|GHB11_012216M7||16||M7||4||10.3||1/14||2/2||Request a Quote|
|GHB11_011120M6||20||M6||14.5||27.1||2/5||1/1||Request a Quote|
|GHB11_012220M6||20||M6||4||10.3||15.4||2/2||Request a Quote|
|1,600 kg||GHA12_014105M7||5||M7||4.5||8||1/9||4/1||Request a Quote|
|GHA12_012110M5||10||M5||9||16||1/20||2/1||Request a Quote|
|GHB11_012216M5||16||M5||10.3||1/14||2/2||Request a Quote|
|GHB11_011116M5||16||M5||14.5||27.1||2/5||1/1||Request a Quote|
|GHD13_012220M7||20||M7||15.9||2/2||Request a Quote|
|GHD13_011120M7||20||M7||15.2||28.8||1/1||Request a Quote|
|2,000 Kg||GHA12_024105M7||5||M7||4.5||8||1/9||4/1||Request a Quote|
|GHB11_022108M7||8||M7||7.26||13.55||1/17||2/1||Request a Quote|
|GHB11_024208M7||8||M7||5||1/6||4/2||Request a Quote|
|GHB11_022110M6||10||M6||7.26||13.55||1/17||2/1||Request a Quote|
|GHB11_024210M6||10||M6||5||1/6||4/2||Request a Quote|
|GHD13_022216M7||16||M7||15.9||2/2||Request a Quote|
|GHD13_021116M7||16||M7||15.2||28.8||1/1||Request a Quote|
|GHD13_022220M6||20||M6||15.9||2/2||Request a Quote|
|GHD13_021120M6||20||M6||15.2||28.8||1/1||Request a Quote|
|2,500 kg||GHA12_024105M6||5||M6||4.5||8||1/9||4/1||Request a Quote|
|GHB11_022108M6||8||M6||7.26||13.55||1/17||2/1||Request a Quote|
|GHB11_024208M6||8||M6||5||1/6||4/2||Request a Quote|
|GHB11_022110M5||10||M5||7.26||13.55||1/17||2/1||Request a Quote|
|GHB11_024210M5||10||M5||5||1/6||4/2||Request a Quote|
|GHD13_022110M7||10||M7||7.6||14.4||2/1||Request a Quote|
|GHD13_024210M7||10||M7||7||4/2||Request a Quote|
|GHD13_022216M6||16||M6||15.9||2/2||Request a Quote|
|GHD13_021116M6||16||M6||15.2||28.8||1/1||Request a Quote|
|GHD13_022220M5||20||M5||15.9||2/2||Request a Quote|
|GHD13_021120M5||20||M5||15.2||28.8||1/1||Request a Quote|
|3,200 Kg||GHA12_034105M5||5||M5||4.5||8||1/9||4/1||Request a Quote|
|GHB11_034105M7||5||M7||3.6||6.8||4/1||Request a Quote|
|GHB11_032108M5||8||M5||7.26||13.55||1/17||2/1||Request a Quote|
|GHB11_034208M5||8||M5||5||1/6||4/2||Request a Quote|
|GHD13_032110M7||10||M7||7.6||14.4||2/1||Request a Quote|
|GHD13_034210M7||10||M7||7||4/2||Request a Quote|
|GHD13_032216M5||16||M5||15.9||2/2||Request a Quote|
|GHD13_031116M5||16||M5||15.2||28.8||1/1||Request a Quote|
|4,000 Kg||GHB11_044104M7||4||M7||3.6||6.8||4/1||Request a Quote|
|GHB11_044105M6||5||M6||3.6||6.8||4/1||Request a Quote|
|GHD13_042108M7||8||M7||7.6||14.4||2/1||Request a Quote|
|GHD13_044208M7||8||M7||7||4/2||Request a Quote|
|GHD13_042110M6||10||M6||7.6||14.4||2/1||Request a Quote|
|GHD13_044210M6||10||M6||7||4/2||Request a Quote|
|5,000 kg||GHB11_054104M6||4||M6||3.6||6.8||4/1||Request a Quote|
|GHB11_054105M5||5||M5||3.6||6.8||4/1||Request a Quote|
|GHD13_054105M7||5||M7||3.8||7.2||4/1||Request a Quote|
|GHD13_052108M6||8||M6||7.6||14.4||2/1||Request a Quote|
|GHD13_054208M6||8||M6||7||4/2||Request a Quote|
|GHD13_052110M5||10||M5||7.6||14.4||2/1||Request a Quote|
|GHD13_054210M5||10||M5||7||4/2||Request a Quote|
|6,300 kg||GHB11_064104M5||4||M5||3.6||6.8||Request a Quote|
|GHD13_064105M7||5||M7||3.8||7.2||Request a Quote|
|GHD13_062108M5||8||M5||7.6||14.4||Request a Quote|
|GHD13_064208M5||8||M5||7||Request a Quote|
|8,000 kg||GHD13_084104M7||4||M7||3.8||7.2||4/1||Request a Quote|
|GHD13_084105M6||5||M6||3.8||7.2||4/1||Request a Quote|
|10,000 kg||GHD13_104104M6||4||M6||3.8||7.2||4/1||Request a Quote|
|GHD13_104105M5||5||M5||3.8||7.2||4/1||Request a Quote|
|12,500 kg||GHD13_124104M5||4||M5||3.8||7.2||10||4/1||Request a Quote|
