Spanco
Freestanding Jib Cranes
Spanco Freestanding Jib Cranes mount to the floor of your facility using a base-plate, the foundation, or by inserting a sleeve to install. These cranes are ideal for under large cranes, in open areas where they have the ability to serve several workstations at once. These cranes offer a 360° rotation and capacities and spans greater than wall-mounted jib cranes.
Spanco Freestanding Jib Crane
Base-Plate Mounted |100 Series
Spanco’s 100 Series Freestanding Jib Crane is a Base-Plate Mounted Jib Crane that is mounted on a baseplate secured to the floor of your facility with anchor bolts and is reinforced with six equally-spaced gussets. The 100 Series Freestanding Jib Crane offers:
- Easy installation
- Up to 15 tonnes of capacity
- Up to a 50 ft. span
- Height up to 40 ft.
Spanco Freestanding Jib Crane
Foundation Mounted | 101 Series
The 101 Series Freestanding Jib Crane is mounted into the foundation of your facility and comes with a square steel plate welded to the bottom of the mast. It features:
- No guessets, freeing up area at the foot of the cranes mast
- Up to 15 tonnes capacity
- Up to 50 ft. span
- Height up to 40 ft.
Spanco Freestanding Jib Crane

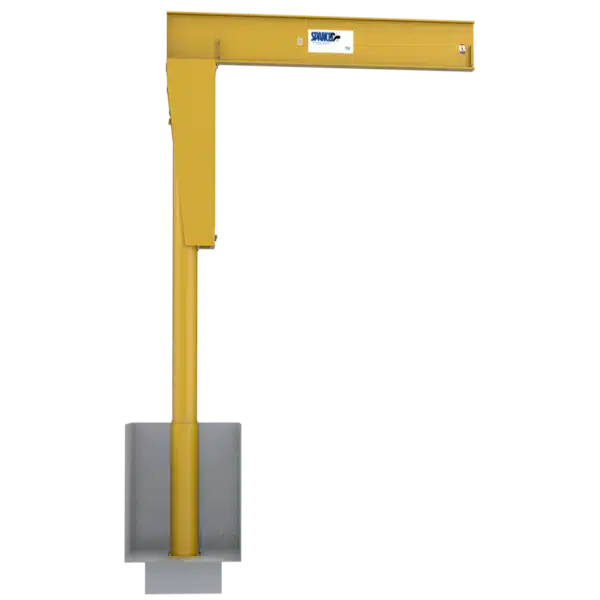

Sleeve-Insert Mounted | 102 Series
The 102 Series Freestanding Jib Crane is a sleeve-mounted jib crane that is placed and secured in a sleeve inserted into the foundation of your facility that is secured by two concrete pours. The 102 Series features:
- Allows for relocation of crane without damaging the mast
- Up to 15 tonnes of capacity
- Up to 50 ft. span
- Height up to 40 ft.
- Info Sheet
- Spanco Catalogue
- Crane Inspections
- Why Liftsafe
Spanco Freestanding Workstation
Jib Crane | 101 Series
The 500 Series Workstation Jib Crane attaches to your facility by the floor on mounting plates and secured with anchor bolts and are a fast moving alternative to motorized jib cranes.
- Up to 1,000 lbs. capacity
- Up to 16 ft. span
- Height up to 12 ft.
Spanco 400 Series Specifications
| Model | Type | Boom Rotation | Capacity | Span | Height Under Boom | Powered Rotation |
|---|---|---|---|---|---|---|
| 100 Series | Base-Plate Mounted | 360° | Up to 15 tonnes | Up to 50 ft. | Up to 40 ft. | No |
| 101 Series | Foundation-Mounted | 360° | Up to 15 tonnes | Up to 50 ft. | Up to 40 ft. | No |
| 102 Series | Sleeve-Insert Mounted | 360° | Up to 15 tonnes | Up to 50 ft. | Up to 40 ft. | No |
| 500 Series | Workstation | 360° | Up to 1,000 lbs. | Up to 16 ft. | Up to 12 ft. | No |
Regulations
Each of these systems meet the standards laid out in the AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6 and CMAA 74.
