Gorbel
Freestanding Jib Cranes
Gorbel Freestanding Jib Cranes stand out as the most versatile cranes in their lineup, ideal for demanding and highly productive tasks. These cranes excel in heavy-duty applications and are particularly well-suited for placement beneath large bridge cranes. Designed for various settings: whether in open work areas with multiple stations, outdoor environments like loading docks, or machining and assembly operations where overlapping with other jib cranes facilitates staged operations.

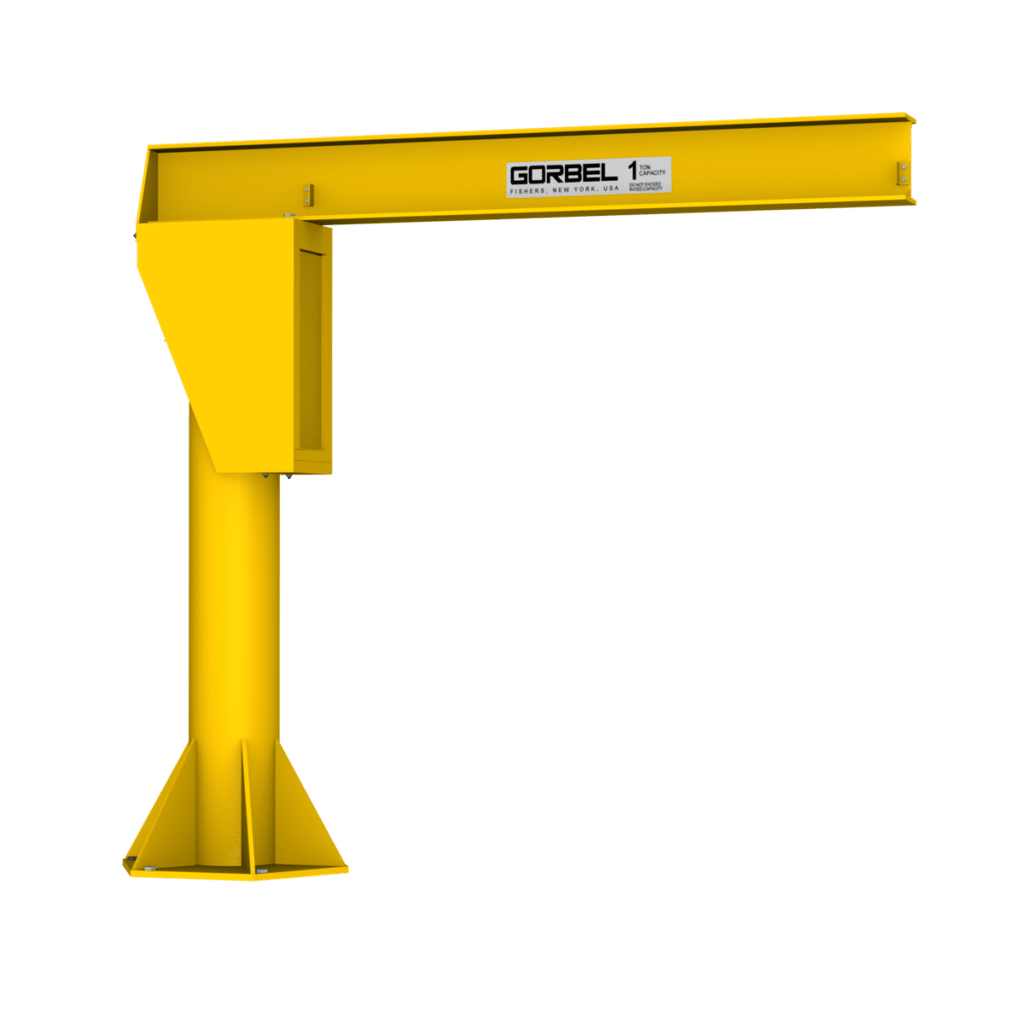

Gorbel Freestanding
I-Beam Jib Crane
- 3 mounting styles: base palte mounted, insert mounted, sleeve mounted
- Up to 10,000 lbs. of capacity
- Boxed style head
- Full supporting triangular gussets to minimize crane defelction
Gorbel Freestanding Jib Crane
Enclosed Track
Gorbel’s Freestanding Enclosed Track Jib Crane is a reliable solution for efficient material handling, designed with user convenience in mind. Most models can be easily bolted directly to an existing floor without the need for a special foundation, and for added flexibility, foundationless options and portable bases are also available. With its user-friendly installation process, this crane allows for quick setup and immediate use. The 360° rotation capability ensures seamless maneuverability, providing a full range of motion to enhance productivity. Available in both steel and stainless steel variants.
- Easy to install
- Available in steel (capacities to 1000 lbs.) and stainless steel (capacities to 500 lbs.)
- Designed to support tool balancers, air balancers, vacuum lifters, and hoists
- Allow for 360° of continuous rotation
Gorbel Freestanding Jib Crane
Tool Solution
Tool Solution Jib Cranes are designed for durable, lightweight applications with suspended tooling or light duty lifting. The small size of these cranes makes them ideal for small areas, such as between machines. The freestanding model features a slim 4″ square mast that allows for installation without a foundation where floor space is limited. The freestanding model features a four-bolt mounting bracket that allows for easy adjustment of the boom height and makes conversion to a wall or column a simple task.
- No foundation required
- Capacities of 50 lbs. (spans to 10’) and 150 lbs. (spans to 12’)
- Designed to be smaller, lighter and more cost effective for applications with suspended tools
- Height up to 12 ft.
Gorbel Freestanding Jib Crane Specifications
| Model | Type | Boom Rotation | Capacity | Span | Height Under Boom | Powered Rotation |
|---|---|---|---|---|---|---|
| Freestanding I-Beam Jib Crane | Freestanding | 360° | Up to 10,000 lbs. | Circular to 20 ft. | Up to 20 ft. | Yes |
| Freestanding Enclosed Track Jib Crane | Workstation | 360° | Up to 1,000 lbs. | Circular to 12 ft. | Up to 12 ft. | No |
| Freestanding Tool Solution Jib Crane | Tool Solution | 180°/200° | Up to 150 lbs. | Circular 4 ft. to 16 ft. | Up to 12 ft. | No |
Regulations
Each of these systems meet the standards laid out in the AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6 and CMAA 74.
