Spanco T Series
Gantry Cranes

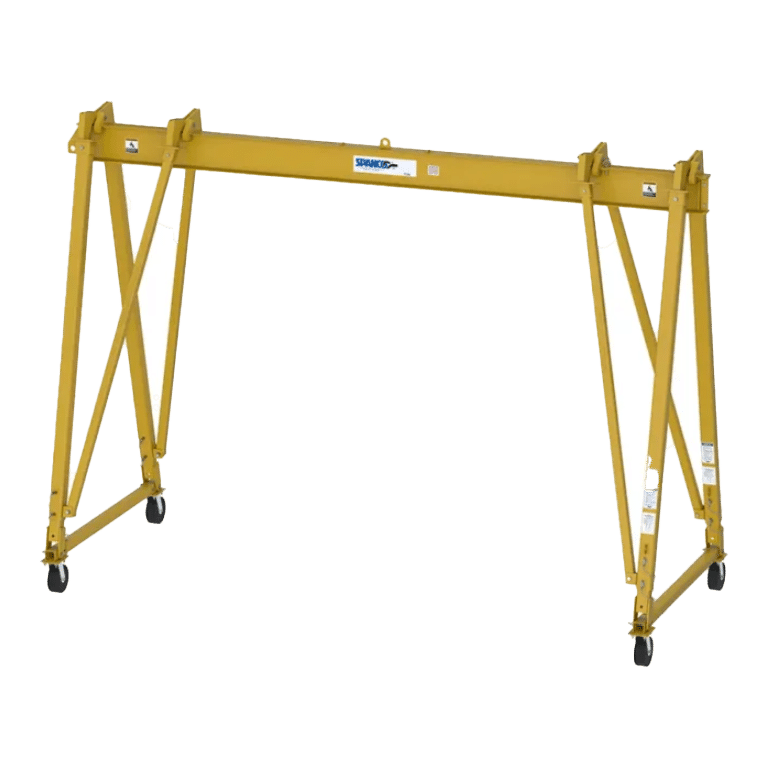

Spanco T Series Gantry Cranes
Spanco T Series Gantry Cranes (Adjustable Height) deliver exceptional versatility for a wide range of material handling applications. With three-way adjustability—span, height, and tread—these cranes adapt easily to multi-level floors and can move through doorways, aisles, mezzanines, and other overhead obstacles.
To meet specific operational needs, T Series Gantry Cranes are available in two models: All-Steel and Aluminum I-Beam, offering flexibility for both heavy-duty and lightweight lifting environments.
- All Steel
- Capacity: Up to 10 tons
- Adjustable Height: Up to 24 ft. 3"
- Adjustable Span: Up to 40 ft.
- Aluminum I-Beam
- Capacity: Up to 3 tons
- Adjustable Height: Up to 22 ft.
- Adjustable Span: Up to 15 ft.
KEY FEATURES
Tailored Solutions
Customized systems expertly designed to optimize every workspace.
In-House Engineering
Fast design approvals and seamless project sign-off with our team.
Certified Components
Top-grade components built to meet all CMAA and CSA standards.
24/7 SERVICE
Crane inspections and maintenance available around the clock.
Cost-Effective Solutions
Efficient material handling systems that save time and reduce costs.
Enhanced Productivity
Solutions specifically designed to improve workflow and facility efficiency.
Qualified Welders
CWB-certified welders ensure full compliance with quality control measures.
Preventative Maintenance
Access plans to avoid safety incidents and compliance violations.
Specifications
| Feature | T-Series | T-Series |
|---|---|---|
| Type | Adjustable Height Steel Gantry | Adjustable Height Aluminum Gantry |
| Capacity | Up to 10 tons | Up to 3 tons |
| Span | Up to 40 ft. | Up to 15 ft. |
| Height | Up to 24 ft. 3" | Up to 22 ft. |
| Coverage Area Type | Moveable/Mobile | Moveable/Mobile |
| Motorization | No | No |
Inspection Coming Up? We’ve Got You Covered.
DOWNLOADS
| Document | Format | Link |
|---|---|---|
| Resource Guide | Download | |
| Inspections Catalogue 2025 | Download | |
| Spanco Workstation Information Sheet | Download | |
| SWL/WLL/MRC – Importance Of These Abbreviations | Article | Click to read |
| CSA B167-16 (Crane and Hoist Compliance) | Article | Click to read |
Regulations in Canada
| Regulation |
|---|
| AISC Steel Construction Manual |
| OSHA 1910.179 |
| ANSI B30.11 |
| AWS D1.1/D1.6 |
| CMAA 74 |
