Gorbel Fixed Height
Gantry Crane

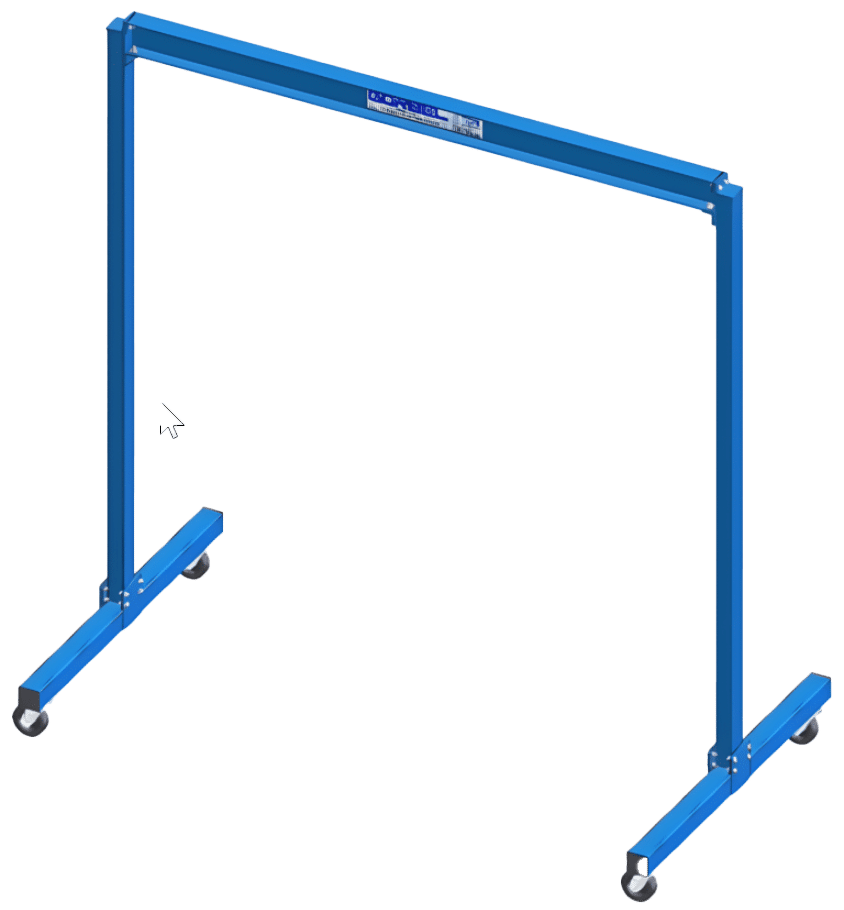

Gorbel fixed Height Gantry Crane
Gorbel’s Fixed Height Gantry Cranes offer a versatile and economical material handling solution for lifting materials throughout your facility.
Designed to be moveable under load, these cranes provide the flexibility to navigate your work area with ease, making them a practical choice for efficient, on-demand lifting.
- Capacity: Up to 5 ton
- Height: From 10 ft. to 20 ft.
- Spans: Up to 8 ft. to 30 ft.
- Stable construction with a heavy-duty end frame featuring square tubing, uprights, knee races, and a channel base
- Moveable
KEY FEATURES
Tailored Solutions
Customized systems expertly designed to optimize every workspace.
In-House Engineering
Fast design approvals and seamless project sign-off with our team.
Certified Components
Top-grade components built to meet all CMAA and CSA standards.
24/7 SERVICE
Crane inspections and maintenance available around the clock.
Cost-Effective Solutions
Efficient material handling systems that save time and reduce costs.
Enhanced Productivity
Solutions specifically designed to improve workflow and facility efficiency.
Qualified Welders
CWB-certified welders ensure full compliance with quality control measures.
Preventative Maintenance
Access plans to avoid safety incidents and compliance violations.
Inspection Coming Up? We’ve Got You Covered.
Specifications
| Feature | Gorbel Fixed Height Gantry Crane |
|---|---|
| Model | FGM |
| Type | Fixed Height Steel Gantry |
| Capacity | Up to 5 tons |
| Span | 8 ft. to 30 ft. |
| Height | 10 ft. to 20 ft. |
| Coverage Area Type | Moveable/Mobile |
| Motorization | No |
DOWNLOADS
| Document | Format | Link |
|---|---|---|
| Resource Guide | Download | |
| Inspections Catalogue 2025 | Download | |
| Gorbel Workstation Crane Information Sheet | Download | |
| SWL/WLL/MRC – Importance Of These Abbreviations | Article | Click to read |
| CSA B167-16 (Crane and Hoist Compliance) | Article | Click to read |
Regulations in Canada
| Regulation |
|---|
| AISC Steel Construction Manual |
| OSHA 1910.179 |
| ANSI B30.11 |
| AWS D1.1/D1.6 |
| CMAA 74 |
