Gorbel Wall Mounted
Jib Cranes
Gorbel Wall Mounted Jib Cranes represent a versatile and efficient solution for material handling needs in industrial environments.
These innovative cranes, including the Wall Bracket Jib Crane, Wall Cantilever Jib Crane, Wall Mounted Enclosed Track Jib Crane, and Wall Mounted Tool Solution Jib Crane, are designed to optimize space utilization while providing superior lifting capabilities. Whether used individually in bays, along walls, or columns of plants, or as supplementary systems to overhead cranes or monorail setups, Gorbel’s Wall-Mounted Jib Cranes offer adaptable solutions to enhance overall plant productivity.
Engineered for durability, ease of movement, and safety, each crane in this series delivers reliable performance, meeting the diverse demands of modern manufacturing and production facilities.
Wall Bracket
Jib Crane

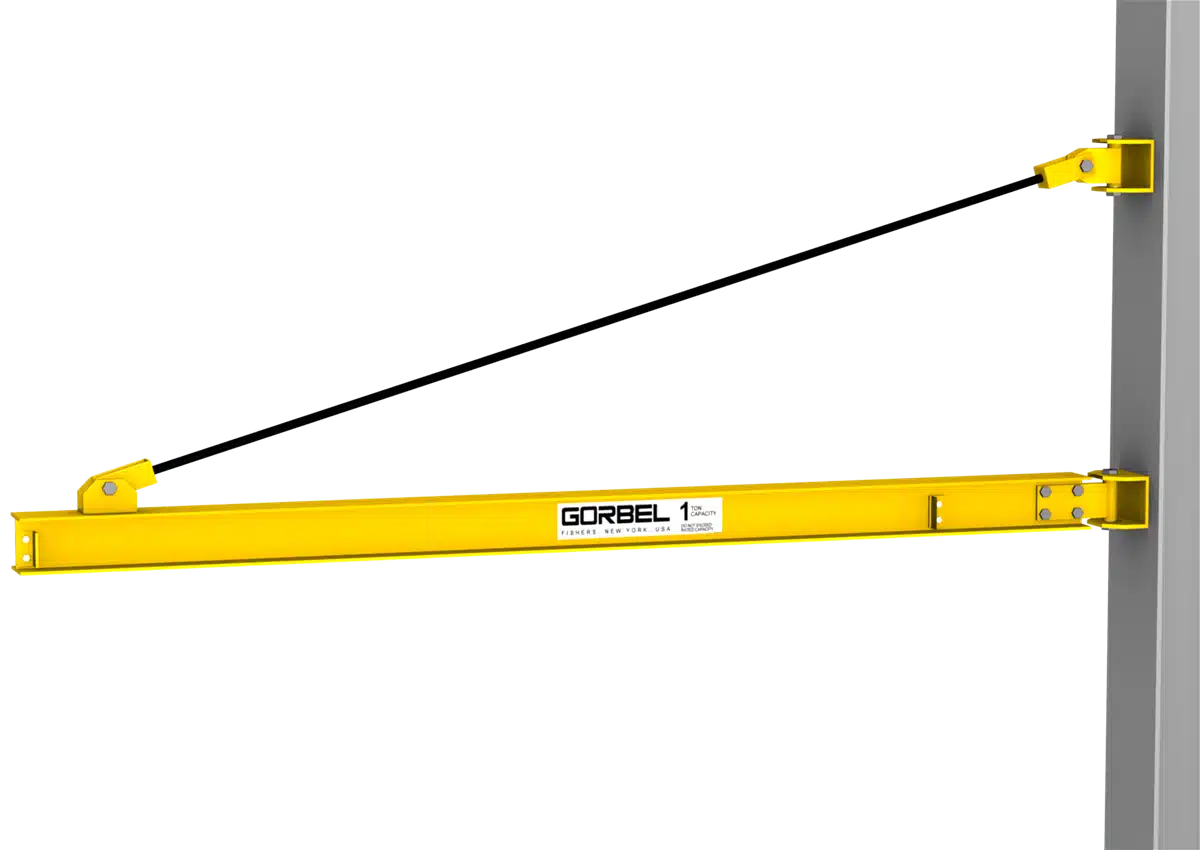

The Wall Bracket Jib Crane contains a single tie rod, right hand threaded at both ends for easy boom adjustment, installations, and is ideal for swinging around obstacles and under obstructions. With its innovative design, the Wall Bracket Jib Crane mounts right to a wall or support structure in your facility.
- Capacity: 10,000 lbs
- Span: Circular to 30’
- Coverage Area: 200°
- Low dead weight of boom
- Formed bracket fittings
Wall Cantilever
Jib Crane
The Wall Cantilever Jib Crane provides hoist coverage and 200° rotation, ideal for individual use in bays, along walls or column of plants, or as a supplement to an overhead crane or monorail system. This jib crane has the advantage of providing maximum lift for the house because it can be installed close to the underside of the lowest ceiling obstruction.
- Capacity: Up to 10,000 lbs
- Span: Circular up to 20’
- Coverage Area: 200°
Wall Mounted Enclosed Track
Jib Crane
The Wall Mounted Enclosed Track Jib Crane is an economical, heavy duty lifting solution for your facility. It uses taper roller bearings at pivot points for unsurpassed ease of rotation. The cantilevered design allows for maximum headroom under the boom. The Wall Mounted Enclosed Track Jib Crane is mounted to a wall or column and is available in steel and stainless steel.
- Capacity: Up to 1,000 lbs (steel) or 500 lbs (stainless)
- Span: Circular to 16’
- Coverage Area: 200°
- Uses enclosed track for the boom assembly, which reduces deadweight for easier rotation than traditional I-Beam Jib Cranes
Wall Mounted Tool Solution
Jib Crane
The Wall Mounted Tool Solution Jib Crane is designed to be a durable, lightweight option for applications with suspended tooling or light duty lifting. It excels in tight work spaces, and with a small bracket center, it makes it deal for low-headroom applications.
- Capacity - up to 50 lbs (10’ span) and 150 lbs (12’ span)
- Spans: 4’ to 16’
- Height: Up to 12’
- Coverage Area: 180°/200°
Gorbel Wall Mounted Jib Crane Specifications
| Specification | Wall Bracket Jib Crane | Wall Mounted Enclosed Tack Jib Crane | Wall Mounted Tool Solution Jib Crane | Wall Cantilever Jib Crane |
|---|---|---|---|---|
| Capacity | Up to 10,000 lbs | Up to 1,000 lbs | Up to 150 lbs | Up to 10,000 lbs |
| Span | Circular to 30 ft | Circular to 16 ft | Circular up to 16 ft | Circular to 20’ |
| Height | N/A | N/A | Up to 12' | N/A |
| Coverage Area Type | Circular | Circular | Circular | Circular |
| Coverage Area | 200° | 200° | 180°/200° | 200° |
| Motorization | Yes | No | No | Yes |
Regulations
Each of these systems meet the standards laid out in the AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6 and CMAA 74.
