Gorbel Mast Style Jib Crane
Gorbel Freestanding
I-Beam
Jib Crane
Gorbel Mast Style Jib Cranes are floor-supported, top-stabilized systems capable of full 360° rotation through a durable top and bottom bearing assembly. Recognized as one of the most cost-effective 360° rotation jib crane options, they require no special foundations, making installation simpler and more economical.

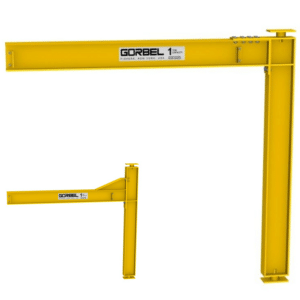

Two styles are available:
Full Cantilever – Provides maximum lift and takes full advantage of available headroom.
Drop Cantilever – Allows the boom to be mounted at a specific height to clear existing overhead obstructions.
- Capacity: Up to 10,000
- Height: up to 20 ft.
- Spans: up to 20 ft.
- No special foundation required
- Mast/beam connections eliminate the need for tie rods or knee braces found on competitive designs, thus permitting maximum trolley travel
Inspection Coming Up? We’ve Got You Covered.
KEY FEATURES
Tailored Solutions
Customized systems expertly designed to optimize every workspace.
In-House Engineering
Fast design approvals and seamless project sign-off with our team.
Certified Components
Top-grade components built to meet all CMAA and CSA standards.
24/7 SERVICE
Crane inspections and maintenance available around the clock.
Cost-Effective Solutions
Efficient material handling systems that save time and reduce costs.
Enhanced Productivity
Solutions specifically designed to improve workflow and facility efficiency.
Qualified Welders
CWB-certified welders ensure full compliance with quality control measures.
Preventative Maintenance
Access plans to avoid safety incidents and compliance violations.
Specifications
| Feature | Full Cantilever (MT400) | Drop Cantilever (MT450) |
|---|---|---|
| Type | Mast-Style Jib Crane | Mast-Style Jib Crane |
| Boom Rotation | 360° | 360° |
| Capacity | Up to 10,000 lbs. | Up to 10,000 lbs. |
| Span | Circular to 20 ft. | Circular to 20 ft. |
| Height Under Boom | Up to 20 ft. | Up to 20 ft. |
| Powered Rotation | Yes | Yes |
DOWNLOADS
| Document | Format | Link |
|---|---|---|
| Resource Guide | Download | |
| Inspections Catalogue 2025 | Download | |
| SWL/WLL/MRC – Importance Of These Abbreviations | Article | Click to read |
| CSA B167-16 (Crane and Hoist Compliance) | Article | Click to read |
Your Perfect Solution Awaits!
Regulations in Canada
| Regulation |
|---|
| AISC Steel Construction Manual |
| OSHA 1910.179 |
| ANSI B30.11 |
| AWS D1.1/D1.6 |
| CMAA 74 |
