MANUAL Lever Hoists
Liftsafe offers compact, portable and highly durable manual lever hoists to pull, lift and position materials. Lever hoists are often referred to as ratchet hoists and allow the operator to move a load through ratcheting movements. This hoist is commonly used for stretching, pulling, tightening or positioning loads and select overhead lifting applications. Lever Hoists rely on manual operation to lift or lower loads and fall into typically two main categories, cable/rope hoist or chain hoists.
Products

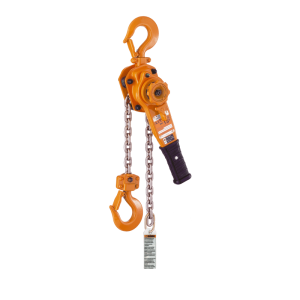

Kito LB Series
The LB lever hoist sets a new industry standard by being smaller, lighter, and stronger than any other lever hoist available. With a capacity of ¾ to 9 metric tonnes, this hoists exceptional strength and durability make it a reliable choice for a wide range of demanding applications, even in extreme environments with temperatures as low as -40°C.
Inspection Coming Up? We’ve Got You Covered.
Key features
Customized Systems
Tailored solutions designed to fit the unique needs of your workspace.
In-House Expertise
Design, engineering, fabrication, installation, and inspection all under one roof.
24/7 Support
Round-the-clock crane inspection and maintenance services available.
Certified Quality
Built with top-grade components that meet CMAA and CSA standards.
Expert Craftsmanship
CWB-certified welders ensure precision and strict quality control.
Cost-Effective Solutions
Engineered for performance without compromising your budget.
Enhanced Productivity
Optimize your workflow with efficient material handling systems.
Preventative Maintenance
Stay compliant and avoid downtime with proactive maintenance plans.
DOWNLOADS
| Document | Format | Link |
|---|---|---|
| Resource Guide | Download | |
| Inspections Catalogue | Download | |
| The Crane Fabrication Process at Liftsafe | Article | Click to read |
| CSA B167-16 (Crane and Hoist Compliance) | Article | Click to read |
Regulations in Canada
| Regulation |
|---|
| AISC Steel Construction Manual |
| OSHA 1910.179 |
| ANSI B30.11 |
| AWS D1.1/D1.6 |
| CMAA 74 |
Your Perfect Solution Awaits!
Specifications
| Feature | Kito LB Heavy Duty Lever Hoist | Kito LX Miniature Lever Hoist |
|---|---|---|
| Capacity | ¾ to 9 metric tonnes | 250 kg to 500 kg |
| Standards | ASME B30.21, ASME HST-3 | ASME B30.21, ASME HST-3 |
| Options | Top hook extender, Shipyard hook, Inspection hook, Black chain, Custom lift lengths | Carrying case attachment, Custom lift lengths |
| Body | High-impact stamped steel housing, Compact and lightweight, Open design for easy inspection and cleaning | Die-cast aluminum, Steel internal frame, Compact and lightweight, Portable design for tight spaces |
| Hooks | Forged, heat-treated alloy steel, Self-closing heavy-duty hook latches, 360-degree rotation | Forged, heat-treated alloy steel, Self-closing heavy-duty hook latches, 360-degree rotation |
| Operation | 360-degree handle rotation, Rubber grip handle, 15-degree recovery stroke, Patented spring-loaded freewheel mechanism | 360-degree handle rotation, Rubber grip handle, Patented spring-loaded freewheel mechanism, Single-step reduction gearing |
| Gears | Highly durable split-load double reduction gears, Enclosed to protect from dust and water | Sealed gears and brake protected against dust and water, Induction heat-treated and case-hardened |
| Load Chain | Nickel plated, Grade 100 heat-treated, Link Pitch: 2.8D, Protective guard around chain pin | Nickel plated, Grade 100 heat-treated, Standard Lift: 5 feet |
| Brake | Weston-style load brake with four braking surfaces, Five-star thread on brake | Weston-style load brake, Enclosed to protect from dust, rain, and dirt |
PROJECTS
Heavy-Duty Crane Systems for SW Ontario Manufacturer
A SW Ontario manufacturer approached Liftsafe with the need for high-capacity lifting systems to support high-volume, multi-shift production. The project required safe and efficient handling of critical components while maintaining strict uptime and scheduling demands, with a strong emphasis on safety, precision operation, and long-term serviceability.
Fast-Track Overhead Crane Installation for Automotive Manufacturer
Liftsafe rapidly performed on-site measurements and provided a same-day quote. Through strong coordination and detailed planning, the 5-ton overhead crane was engineered and installed on time to support the customer’s automotive manufacturing process
Custom Overhead Crane Systems for Electrical Transformer Manufacturing
A series of fully integrated overhead crane and runway systems were installed to support critical stages of the transformer manufacturing process. The systems enable safe, controlled, and precise lifting of large cores, tanks, and assemblies, improving workflow efficiency, protecting high-value components, and supporting consistent production quality, all while maintaining a strong focus on worker safety and regulatory compliance.
Six Ergonomic Workstation Cranes for Curtain Wall Manufacturer
Liftsafe designed and installed six custom ergonomic workstation crane systems featuring custom grabs, and precision hoists for a leading curtain wall manufacturer.
