Workstation Bridge Cranes
Designed to eliminate manual lifting and enable/empower your workers to move loads from workstation to workstation. These systems are ideal for moving loads ranging anywhere from 250 lbs to 6 tons for along the bridge and under the runway. Our Freestanding and Ceiling-Mounted systems are readily available and offer optimal flexibility depending on your facility’s capabilities.
What to expect from OHSA

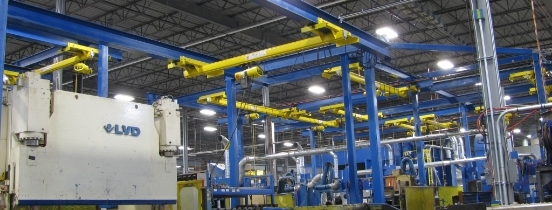

Freestanding Workstation Bridge Cranes
Freestanding Workstation Bridge Cranes
Freestanding Workstation Bridge Cranes are an effective and affordable lifting solution when you need overhead crane coverage for a large area or have a flexible production facility. Because there is no overhead mounting required, there will be no unnecessary stress on the facility’s structure. These ergonomic push/pull systems can be installed anywhere on the facility floor, providing easy product movement, stability, positioning and precision.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
- Crane capacity, height, span and additional details are available upon request.
- Working alongside our trusted and reliable suppliers, we combine expert service to engineer both standard and custom crane systems.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
| Supplier | Product name | Capacity | Span | Height | Certifications | Features | ||
|---|---|---|---|---|---|---|---|---|
| Gorbel | Hybrid workstation crane | up to 6 tons | up to 34′ | up to 20′ | AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6, and MMA MH27.2 | • Light, enclosed track aluminum bridges for easy movement and long life • Multiple bridges with no buffers to maximize the useable space • Large overall capacity to accommodate multiple workstations or a long work flow • Combine manual and motorized options to meet the lifting needs of the entire operation in one crane | Request a Quote | |
| Gorbel | Free standing work station bridge crane | up to 4000 lbs | up to 34′ | up to 14′ | AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6, and MMA MH27.2 | • Enclosed track / easy movement and long life • Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge • Ease of Installation / install on any standard 6″ concrete floor • Smooth rolling surface / Easier movement of bridge and trolleys • Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive | Request a Quote | |
| Customizations available | ||||||||
| Spanco | Freestanding workstation bridge cranes | up to 4000 lbs | up to 40′ | 10′, 12′, 14′ are standard | AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6, and MMA MH27.2 | Request a Quote | ||
| Spanco | Headerless workstation bridge cranes and monorails | up to 1000 lbs | 8′ to 12′ | 10′, 12′, 14′ are standard | AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6, and MMA MH27.2 | Request a Quote | ||
| Customizations available | ||||||||

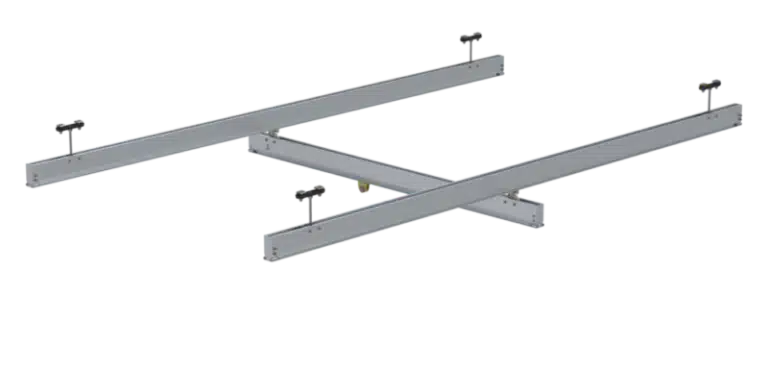

Ceiling Mounted Workstation Bridge CranesCeiling Mounted Workstation Bridge Cranes
Ceiling-Mounted Workstation Bridge Cranes are perfect when you need to keep the production floor clear of obstructions. These systems are designed to allow for rapidly expanding runway lengths and bridges. With this system, you can easily add or subtract extra sections to the track along the runway to fit the mechanical task or heavy transport loads. Ceiling-Mounted Workstation Bridge Cranes provide unlimited lifting coverage without sacrificing floor space or obstructing work areas. These cranes eliminate the need for steel supports, making them a cost-effective and ergonomic material handling solution.
Being an approved dealer for leading brands like GH, Spanco, Gorbel, Kito, CMCO, R&M and Movomech allows Liftsafe Engineering & Service Group to provide you with the system you need rather than trying to sell you a system based on what we have.
- Crane capacity, height, span and additional details are available upon request.
- Working alongside our trusted and reliable suppliers, we combine expert service to engineer both standard and custom crane systems.
- Liftsafe Engineering can service the entire lifecycle of your product. From start to finish, we design, build, inspect, and maintain.
| Supplier | Product name | Capacity | Span | Height | Certifications | Features | ||
|---|---|---|---|---|---|---|---|---|
| Gorbel | Ceiling mounted bridge crane | up to 4000 lbs | up to 34′ | N/A | AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6, and MMA MH27.2 | • Enclosed track / easy movement and long life • Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge • No support structures so work areas are kept clear of obstruction • Ease of Installation • Smooth rolling surface / Easier movement of bridge and trolleys • Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive | Request a Quote | |
| Customizations available | ||||||||
| Spanco | Ceiling-mounted workstation bridge cranes | up to 4000 lbs | up to 40′ | Determined by ceiling structure | AISC Steel Construction Manual, OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.6, and MMA MH27.2 | Allow you to readily expand runway lengths and the number of bridges, and add links to monorail crane systems | Request a Quote | |
| Customizations available | ||||||||
Models
80 foot 1 ton Jib Crane
Installed at a nuclear reactor mock-up facility, our team at Liftsafe engineered, designed, manufactured, installed, and inspected an 80′ 1 Ton Jib Crane system. Designed to operate in 50 km/h sustained wind speed, this specific Jib Crane extends 35′ through a custom rooftop hatch opening.
Double Girder Top Running Overhead Crane
Double Girder Top Running Overhead Crane designed, built, inspected and installed all within a tight window, exceeding the customers expectations!
Woodstock Precision Machining Gorbel Easy Arm Crane
The Liftsafe team fabricated, installed and inspected several Workstation Cranes for a large Southern Ontario manufacturing facility. These cranes are designed to eliminate manual lifting and enable workers to move loads throughout the facility.
- CWB Certified Welders (Steel and Aluminum)
- CWB certified for welding of Steel (CSA Standard W47.1, Division 2)
- CWB certified for welding of Aluminum (CSA Standard W47.2, Division 2)
- Professional Engineers Ontario
- CLAC
Build your crane
"*" indicates required fields
Crane Lifting Systems
Customized systems for every workspace.
In-house engineering team for fast sign-off.
Crane inspection and maintenance available 24/7.
Top-grade components meet all CMAA and CSA standards.
CWB qualified welders, meeting all quality control measures.
Cost-effective material handling solutions.
Improved productivity of the facility.
Access preventative maintenance plans to avoid safety and compliance violations.
Crane Inspections and Maintenance
Let us support the entire lifecycle of your crane systems. Book your inspections, maintenance and repairs 24/7 through our online Customer Portal.
